SKU: SSUCFL.205-14

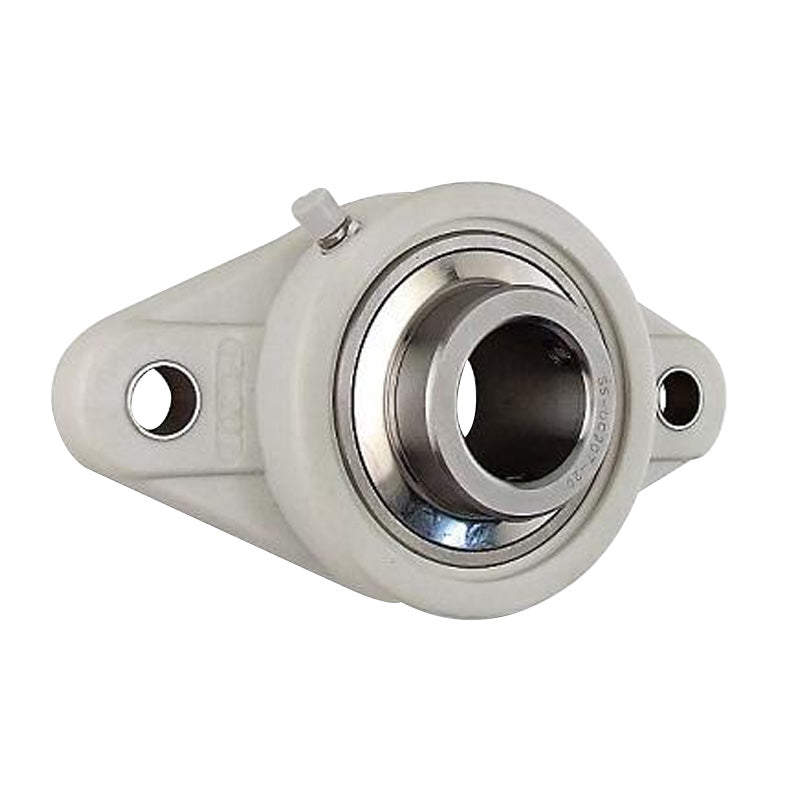

SSUCFL205-14 Imperial Two Bolt Oval Stainless Steel Flange Housing with 7/8 inch Bore Stainless Insert
- Regular price
- €45.88 ex VAT
- Sale price
- €45,88
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.83
4
€38.54
9
€38.08
19
€37.62
49
€37.16
99
€36.70
499
€34.41
999
€33.95
1999
€33.49
2999
€33.03
4999
€32.12
SKU:
SSUCFL.205-14
SSUCFL205-14 Imperial Two Bolt Oval Stainless Steel Flange Housing with 7/8 inch Bore Stainless Insert
- Regular price
- €45.88 ex VAT
- Sale price
- €45,88
- Regular price
-
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 7/8 inch |
| a | = | 130mm |
| e | = | 99mm |
| i | = | 16mm |
| g | = | 13mm |
| L | = | 27mm |
| S | = | 16mm |
| b | = | 68mm |
| Z | = | 35.7mm |
| Bi | = | 34mm |
| n | = | 14.3mm |
| Bolt | = | 14mm |
| Weight | = | 0.63 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
