SKU: SSUCP.205-16

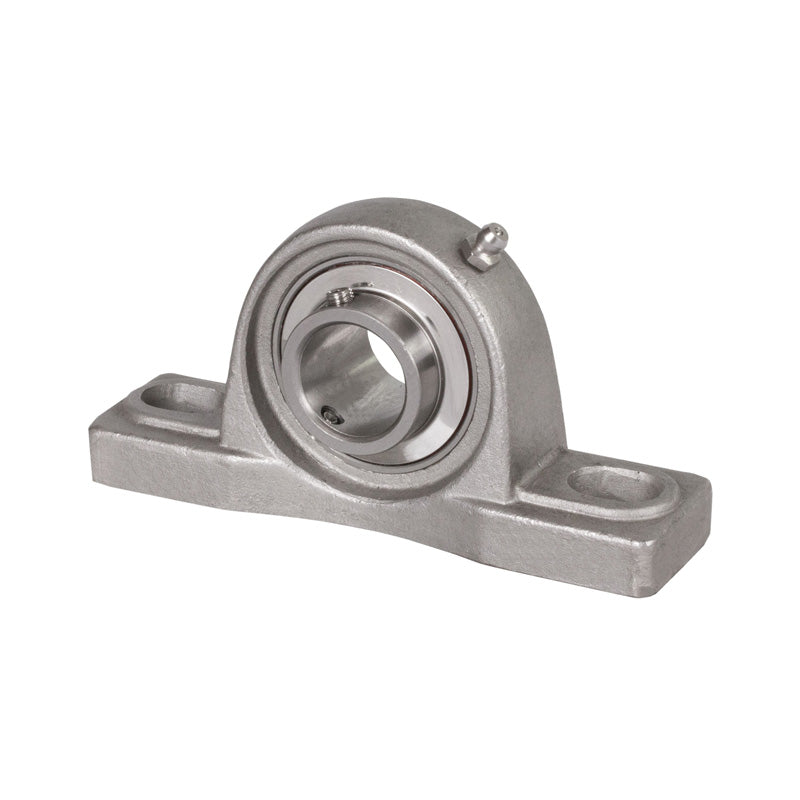

SSUCP205-16 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert

Name: SSUCP205-16 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert
Brand: Gen
SKU: SSUCP.205-16
Price: 43.74 EUR
Availability: InStock

€43,74 ex VAT

Sale Sold out

Equivalent to: NP1

In stock

Price Break

3+ €33,31

4+ €31,44

9+ €31,06

19+ €30,69

49+ €30,31

99+ €29,94

499+ €28,07

999+ €27,69

1999+ €27,32

2999+ €26,95

4999+ €26,20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25.4mm = 1 inch
Style:: SSUCP
Bolt Hole Centres:: 105mm

Technical

d	1 inch
h	36.5mm
a	140mm
e	105mm
b	38mm
s2	19mm
s1	13mm
g	16mm
w	70mm
B1	34mm
n	14.3mm
Bolt	10mm
Weight	0.79 kg
Dynamic load	1100 kgf
Static load	710 kgf
Rec max speed	6250 rpm
