SKU: SSUCP.211-32

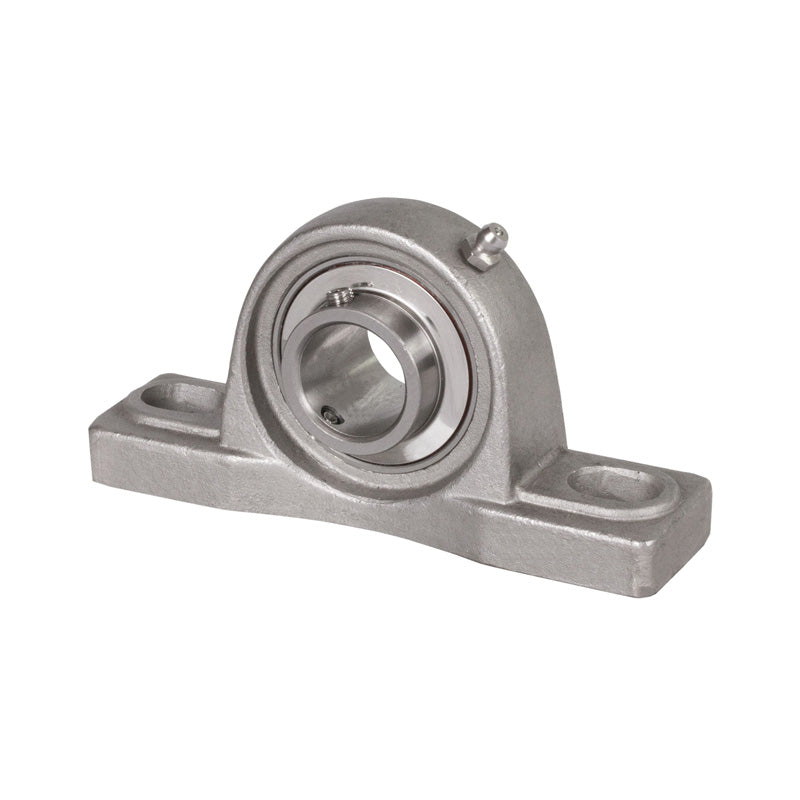

SSUCP211-32 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Stainless Insert
- Regular price
- €144.67 ex VAT
- Sale price
- €144,67
- Regular price
-
In stock
Quantity Price Breaks
3
€128.76
4
€121.52
9
€120.08
19
€118.63
49
€117.18
99
€115.74
499
€108.50
999
€107.06
1999
€105.61
2999
€104.16
4999
€101.27
SKU:
SSUCP.211-32
SSUCP211-32 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Stainless Insert
- Regular price
- €144.67 ex VAT
- Sale price
- €144,67
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 2 inch |
| h | = | 63.5mm |
| a | = | 219mm |
| e | = | 171mm |
| b | = | 60mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 22mm |
| w | = | 126mm |
| B1 | = | 55.6mm |
| n | = | 22.2mm |
| Bolt | = | 16mm |
| Weight | = | 3.4 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
| Rec max speed | = | 3100 rpm |
