SKU: ST2.1/8-RHP

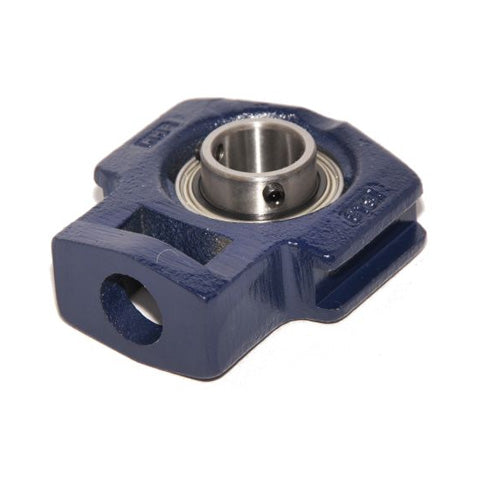

RHP ST2-1/8 Cast Iron Take Up Unit and 2-1/8 inch Bore Insert

RHP ST2-1/8 Cast Iron Take Up Unit and 2-1/8 inch Bore Insert
Regular price €150,09 ex VAT
Regular price Sale price €150,09 ex VAT
Sale Sold out

In stock

Price Break
10+ €114,06
20+ €107,65
30+ €106,37
40+ €105,09
50+ €103,81
75+ €102,53
100+ €96,12
200+ €94,84
250+ €93,56
500+ €92,27
1000+ €89,71
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

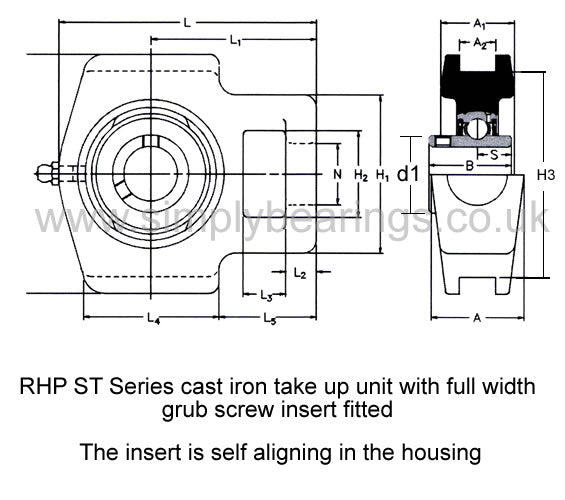

Bore 2-1/8 inch
L 7.165 inch
L1 4.488 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055-2-1/8G+insonly">1055-2-1/8G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
