SKU: ST2.11/16DEC-RHP

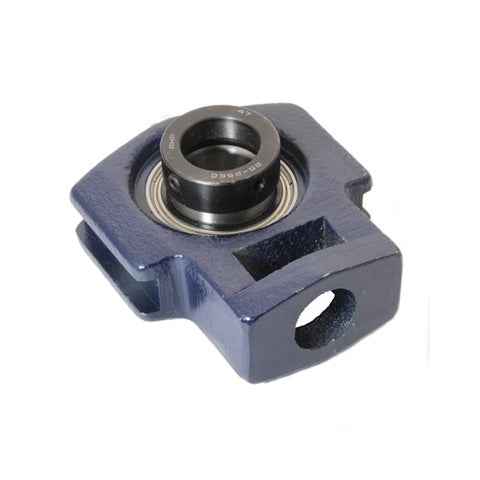

RHP ST2-11/16DEC Cast Iron Take Up Unit and 2-11/16 inch Bore Insert

RHP ST2-11/16DEC Cast Iron Take Up Unit and 2-11/16 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-11/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B3 3.361 inch
s2 1.346 inch
d2 3.812 inch
Dynamic load 61000 N
Static load 45000 N
Rec max speed 2450 rpm
Weight 7.9 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-11/16DECG+insonly">1070-2-11/16DECG Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
