SKU: STUD-C19M14x1.5-CHI

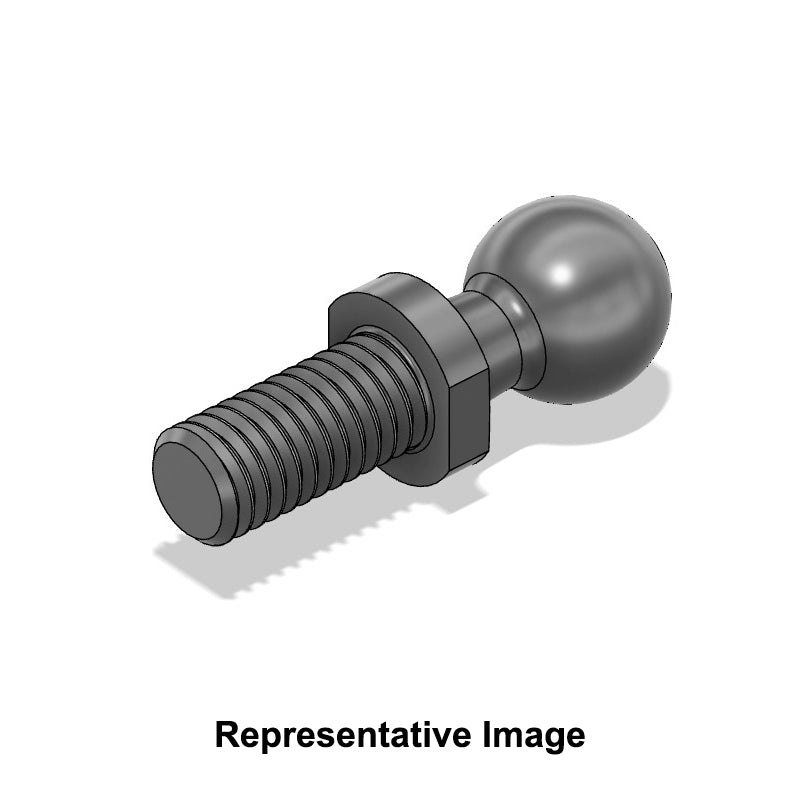

Chiavette C19 Steel Ball Stud 19mm Ball Diameter M14x1.5 Thread - Allow 2-3 Days
- Regular price
- €9.26 ex VAT
- Sale price
- €9,26
- Regular price
-
In stock
Quantity Price Breaks
10
€8.24
19
€7.78
29
€7.69
17
€7.59
49
€7.50
74
€7.41
117
€6.95
249
€6.85
417
€6.76
179
€6.67
SKU:
STUD-C19M14x1.5-CHI
Chiavette C19 Steel Ball Stud 19mm Ball Diameter M14x1.5 Thread - Allow 2-3 Days
- Regular price
- €9.26 ex VAT
- Sale price
- €9,26
- Regular price
-
Description
Chiavette Steel Threaded Ball Studs: Ball studs are supplied as an individual component designed to form a ball joint assembly or for custom end fittings. These ball studs are intended to be used alongside a compatible ball socket that when combined will produce a ball joint. This threaded stud seamlessly integrates into diverse mechanical systems. Its threaded design simplifies installation, facilitating efficient assembly for peak performance.
Technical

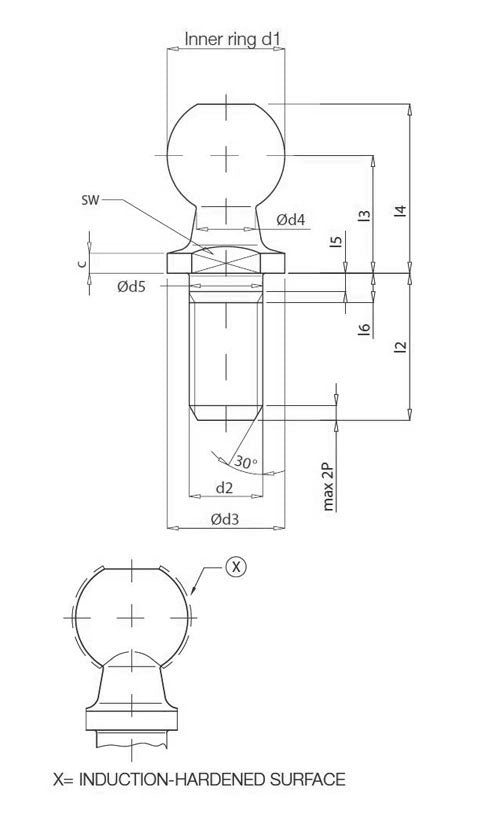

| --- | = | Dimensions |
| d1 | = | 19mm |
| c | = | 3mm (+/-0.4) |
| d2 | = | M14x1.5 |
| d3 | = | 19mm |
| d4 | = | 10mm (+/-0.2) |
| d5 | = | 14mm |
| l2 | = | 28mm (+/-0.3) |
| l3 | = | 20mm (+/-0.3) |
| l4 | = | 28.5mm (+/-0.3) |
| l5 | = | 5mm (+/-0.3) |
| l6 | = | 10.8mm |
| sw | = | 16mm |
| Weight | = | 0.071 kg |
