SKU: SU002

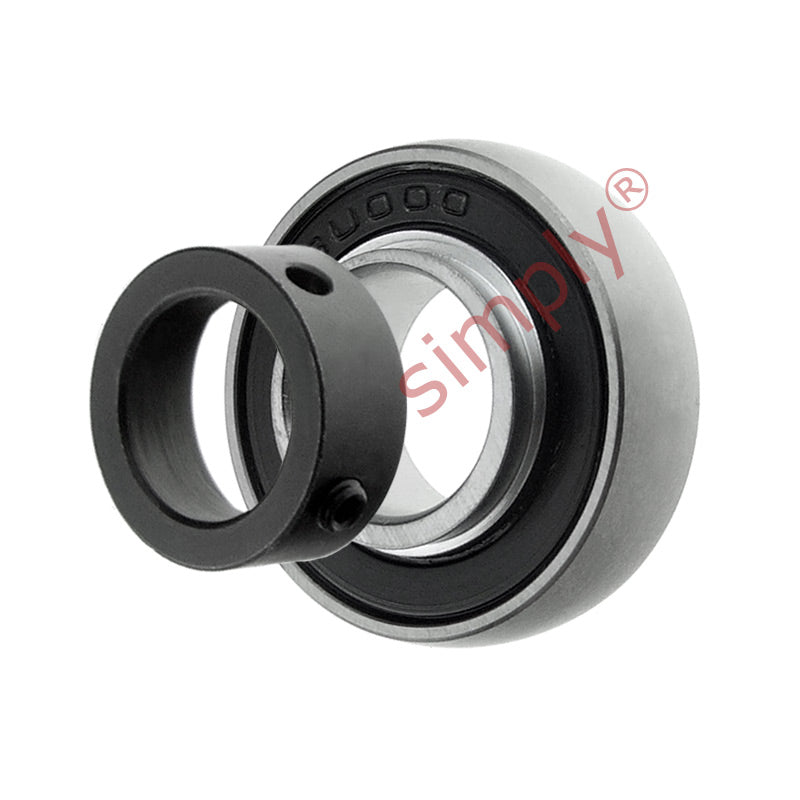

SU002 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 15mm Bore 32mm Outside Diameter
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
In stock
Quantity Price Breaks
3
€19.83
4
€18.72
9
€18.49
19
€18.27
49
€18.05
99
€17.82
499
€16.71
999
€16.49
1999
€16.26
2999
€16.04
4999
€15.60
SKU:
SU002
SU002 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 15mm Bore 32mm Outside Diameter
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 15mm |
| D | = | 32mm |
| L | = | 18.5mm |
| Bi | = | 12mm |
| Be | = | 9mm |
| r | = | 0.5mm |
| n | = | 4.5mm |
| B3 | = | 8.5mm |
| d1 | = | 22mm |
| A | = | 3.5mm |
| ds | = | M4x0.7 |
| Dynamic load | = | 570 N ~ 58.124 kgf |
| Static load | = | 290 N ~ 29.572 kgf |
| Weight | = | 0.05 kg |
