SKU: SUCF.PL.204-12

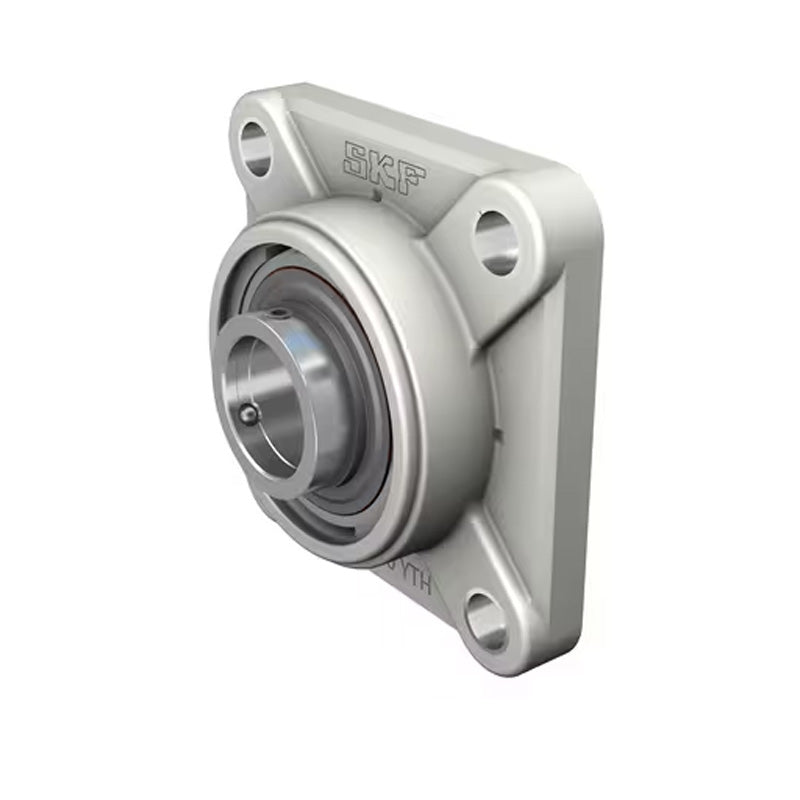

SUCFPL204-12 Imperial Four Bolt Square Thermo Plastic Flange Housing with 3/4 inch Bore Stainless Insert
SUCFPL204-12 Imperial Four Bolt Square Thermo Plastic Flange Housing with 3/4 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| a | 86mm |
| e | 64mm |
| i | 15mm |
| g | 12mm |
| L | 25.6mm |
| S | 12mm |
| Z | 33.3mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
