SKU: SUCF.PL.206-19

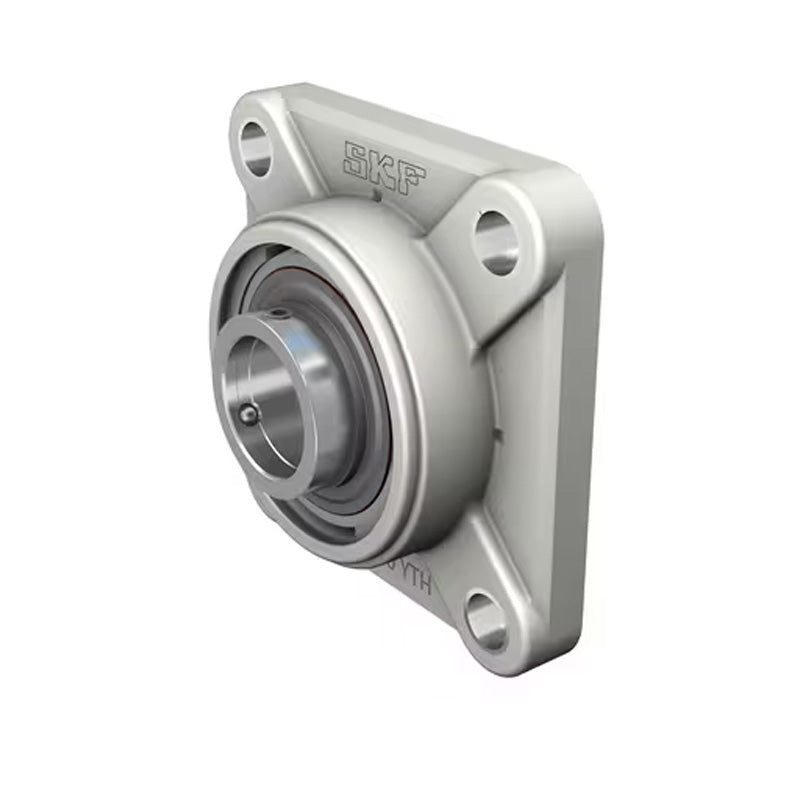

SUCFPL206-19 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-3/16 inch Bore Stainless Insert
SUCFPL206-19 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-3/16 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 14mm |
| L | 31mm |
| S | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | 10mm |
| Weight | 1.1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Temperature Range | -35 to 102 deg C |
