SKU: SUCF.PL.213

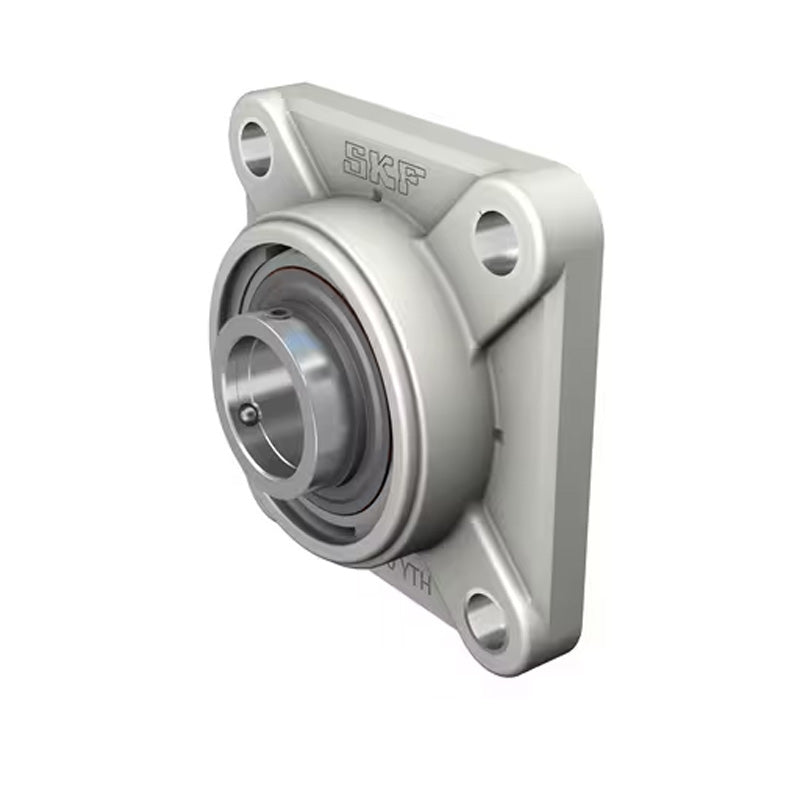

SUCFPL213 Metric Four Bolt Square Thermo Plastic Flange Housing with 65mm Bore Stainless Insert
SUCFPL213 Metric Four Bolt Square Thermo Plastic Flange Housing with 65mm Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 30mm |
| g | 20mm |
| L | 50mm |
| S | 19mm |
| Z | 69.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt | 16mm |
| Weight | 5.3 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
| Temperature Range | -35 to 102 deg C |
