SKU: SUCF.PL.213-40

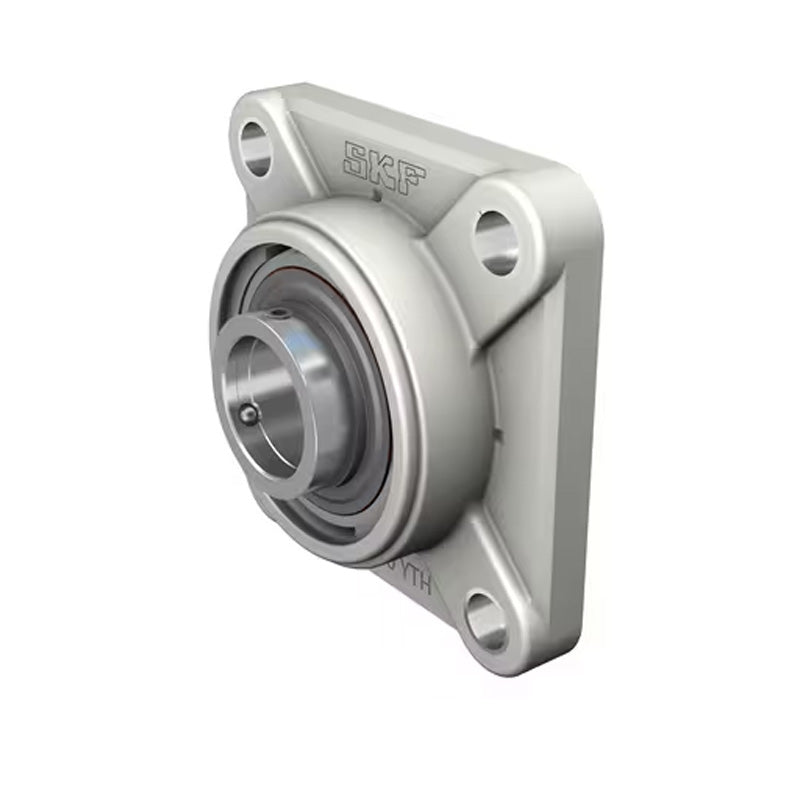

SUCFPL213-40 Imperial Four Bolt Square Thermo Plastic Flange Housing with 2-1/2 inch Bore Stainless Insert
SUCFPL213-40 Imperial Four Bolt Square Thermo Plastic Flange Housing with 2-1/2 inch Bore Stainless Insert
Out of stock
Description
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 30mm |
| g | 20mm |
| L | 50mm |
| S | 19mm |
| Z | 69.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt | 16mm |
| Weight | 5.3 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
| Temperature Range | -35 to 102 deg C |
