SKU: SUCT.PL.208

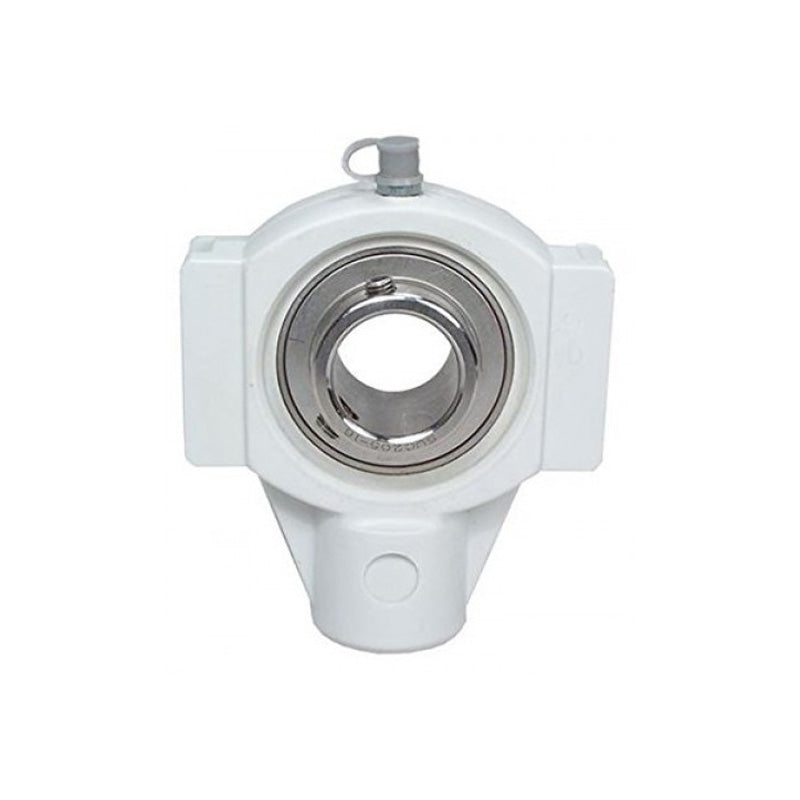

SUCTPL208 Metric Thermo Plastic Take Up Unit Housing with 40mm Bore Stainless Insert
- Regular price
- €95.62 ex VAT
- Sale price
- €95,62
- Regular price
-
In stock
Quantity Price Breaks
3
€85.10
4
€80.32
9
€79.36
19
€78.41
49
€77.45
99
€76.50
499
€71.72
999
€70.76
1999
€69.80
2999
€68.85
4999
€66.93
SKU:
SUCT.PL.208
SUCTPL208 Metric Thermo Plastic Take Up Unit Housing with 40mm Bore Stainless Insert
- Regular price
- €95.62 ex VAT
- Sale price
- €95,62
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 40mm |
| a | = | 140mm |
| c | = | 34.5mm |
| d | = | 16mm |
| h | = | 85mm |
| m | = | 102mm |
| s | = | M16 |
| t | = | 40mm |
| v | = | 114mm |
| w | = | 80mm |
| B | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 4000 rpm |
