SKU: SW320-M2400

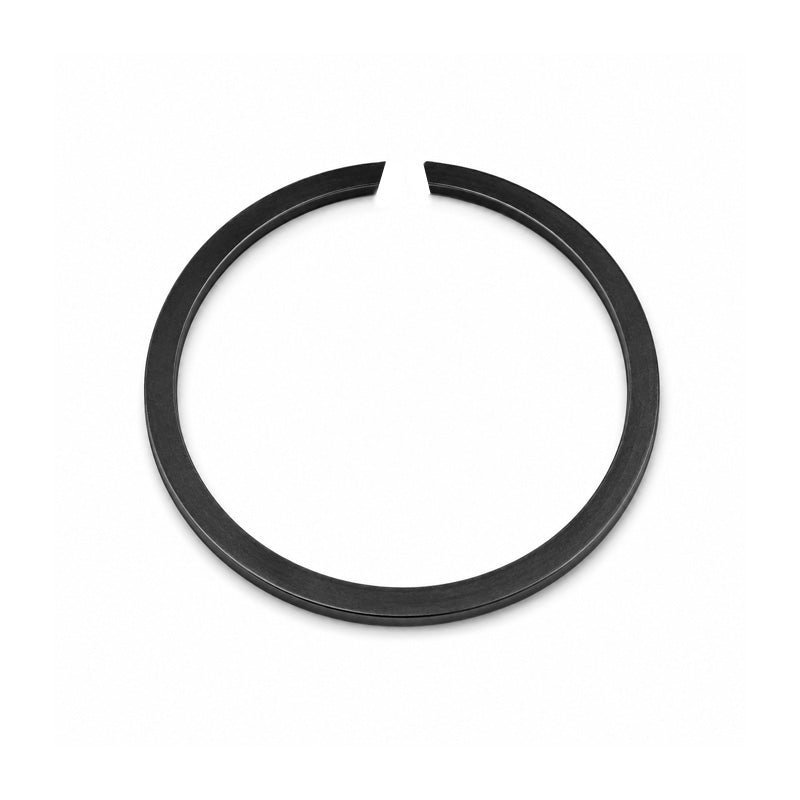

SW320 Snap Ring to Suit 320mm Shaft
SW320 Snap Ring to Suit 320mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS320 CFS-320 2400-320 SW320 SW-320 M2400-320
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 311.9mm
- Shaft Size:
- 320mm
Technical
Technical
| d1 | 320mm |
|---|---|
| s | 4mm (Tolerance -0.1) |
| b | 7.5mm (Tolerance -0.1) |
| d3 max. | 311.9mm |
| d2 | 315mm (Tolerance - 0.36) |
| m min. | 4.2mm |
| FN | 416 kN |
| FR | 137 kN |
| n det x1000 | 0.3 rpm |
