SKU: SY-52-S-IKO

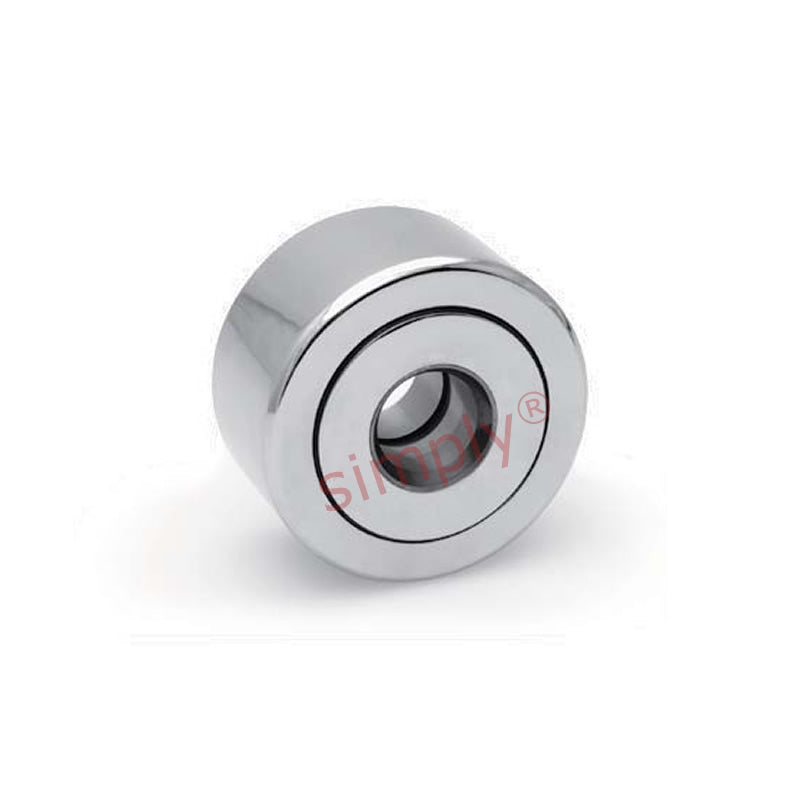

IKO SY52S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.4375x1.625x0.9375 inch Allow 7-10 Days
IKO SY52S Stainless Steel Sealed Cylindrical Cam Yoke Roller 0.4375x1.625x0.9375 inch Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Sealed Cam Yoke Roller: These bearings are dimensionally interchangeable with standard cam yoke rollers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Width:
- 23.81mm = 0.937 (15/16) inch
Technical
Technical
| A | 1.625 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.875 inch |
| D | 0.9375 inch |
| E | 57/64 inch |
| F | 3/32 inch |
| Recommended shaft diameter | 0.4372 inch |
| Basic dynamic rating | 4350 lbs |
| Max static capacity | 11200 lbs |
