SKU: SY1.1/4PF/AH-SKF

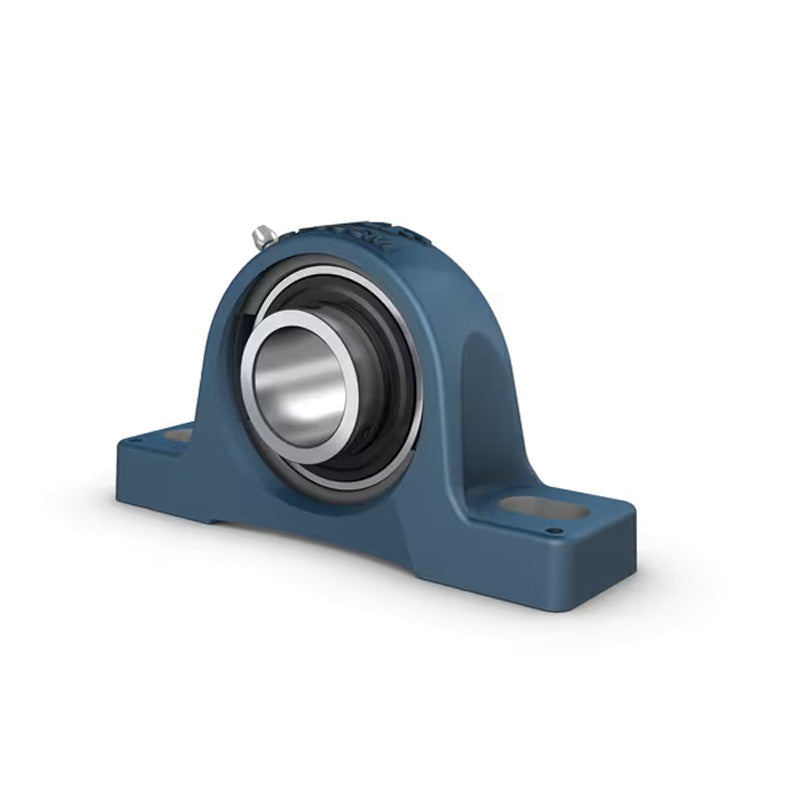

SKF SY1-1/4PF/AH Concentra Pillow Block Housing with 1-1/4 inch Insert
SKF SY1-1/4PF/AH Concentra Pillow Block Housing with 1-1/4 inch Insert
Out of stock
Description
Description
|
SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SY
- Bolt Hole Centres:
- 126mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 45mm |
| B | 47.6mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| s1 | 32.4mm |
| Static Load Cr | 15.3 kN |
| Dynamic Load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.65 kg |
