SKU: SYKC30NTR/VE495-SKF

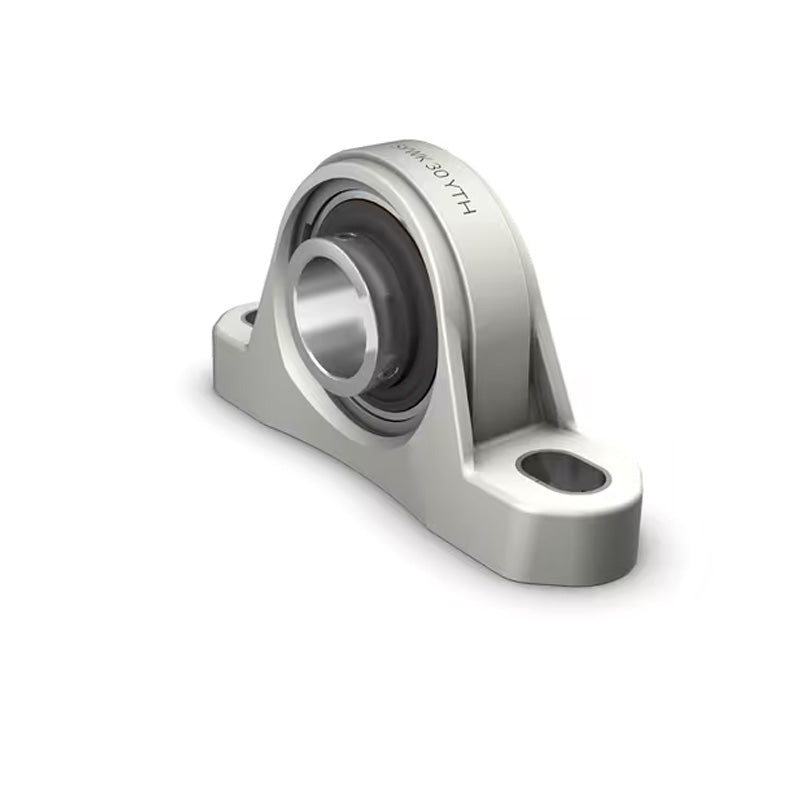

SKF SYKC30NTR/VE495 Plummer Block with Food-Grade Grease Grub Screw 30mm Insert
SKF SYKC30NTR/VE495 Plummer Block with Food-Grade Grease Grub Screw 30mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- SYKC
- Bolt Hole Centres:
- 121mm

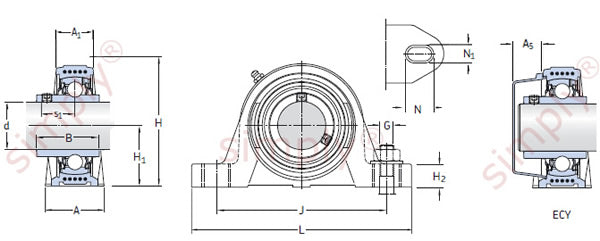

Technical
Technical
| d | 30mm |
|---|---|
| A | 40mm |
| A1 | 25mm |
| B | 38.1mm |
| H | 82mm |
| H1 | 42.9mm |
| H2 | 19mm |
| J | 121mm |
| L | 159mm |
| N | 21.5mm |
| N1 | 14.5mm |
| G | 12mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 3800 rpm |
| A5 | 20mm |
| Weight | 0.49 kg |
| Housing | SYKC506N |
| Insert | YAR206-2RF/HV |
| Compatible end cover closed | ECY206 |
