SKU: SYL1.1/2TH-SKF

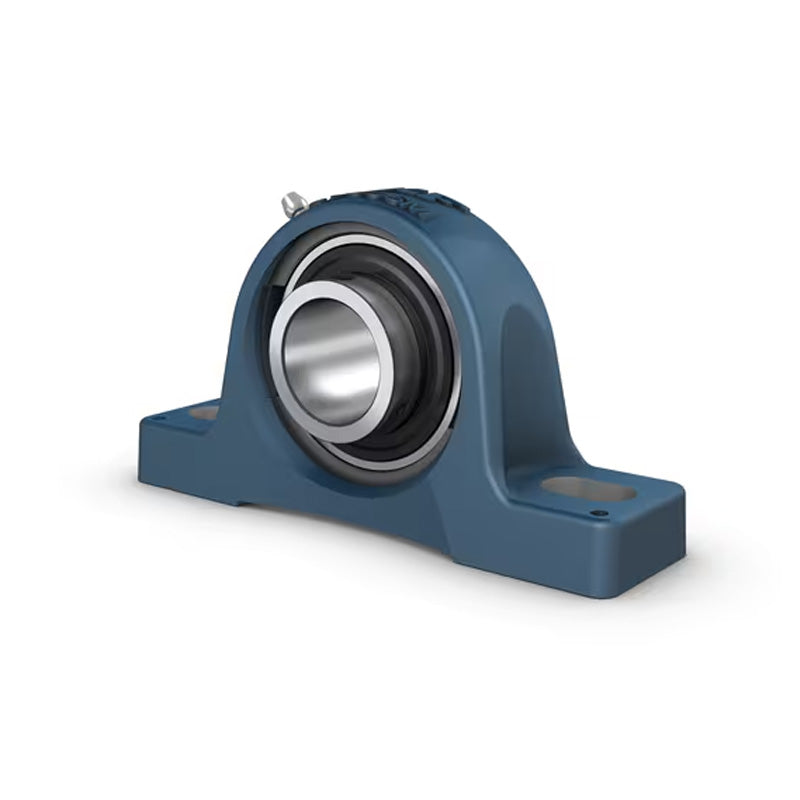

SKF SYL1-1/2TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/2 inch
SKF SYL1-1/2TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/2 inch
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SYL
- Bolt Hole Centres:
- 237mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A | 54mm |
| A1 | 36.3mm |
| B | 49.2mm |
| H | 98mm |
| H1 | 49.2mm |
| H2 | 29.5mm |
| J | 237mm |
| L | 284mm |
| N | 28mm |
| N1 | 24mm |
| G | 22mm |
| s1 | 30.2mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 24.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 30.5mm |
| A6 | 33.5mm |
| Weight | 0.97 kg |
| Housing | SYL508 |
| Insert | YAR208-108-2RF/HV |
| Compatible end cover closed | ECL208 |
| Compatible end cover open | ECL208-108B |
