SKU: SYL20TR/VE495-SKF

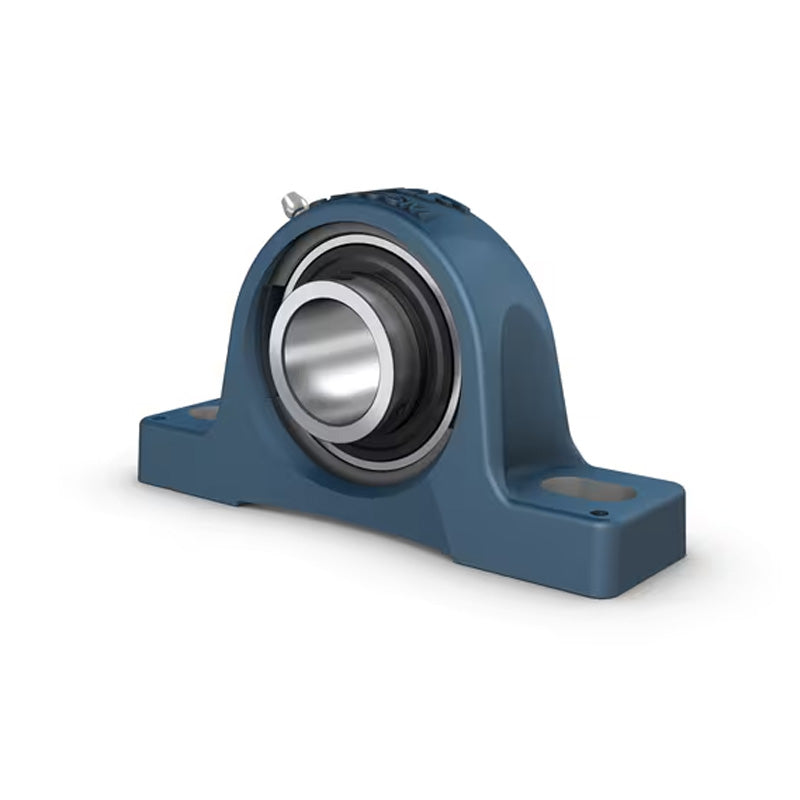

SKF SYL20TR/VE495 Plummer Block with Food-Grade Grease Grub Screw 20mm Insert
SKF SYL20TR/VE495 Plummer Block with Food-Grade Grease Grub Screw 20mm Insert
Out of stock
Description
Description
|
SKF Y-bearing Plummer Block Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- SYL
- Bolt Hole Centres:
- 95mm
Technical
Technical
| d | 20mm |
|---|---|
| A | 38mm |
| A1 | 22.5mm |
| B | 31mm |
| H | 65mm |
| H1 | 33.3mm |
| H2 | 14.2mm |
| J | 95mm |
| L | 127mm |
| N | 14mm |
| N1 | 11mm |
| G | 10mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 20.5mm |
| A6 | 20.5mm |
| Weight | 0.27 kg |
| Housing | SYL504 |
| Insert | YAR204-2RF/VE495 |
| Compatible end cover closed | ECL204 |
| Compatible end cover open | ECL204B |
