SKU: T1090-3.7/16G-RHP

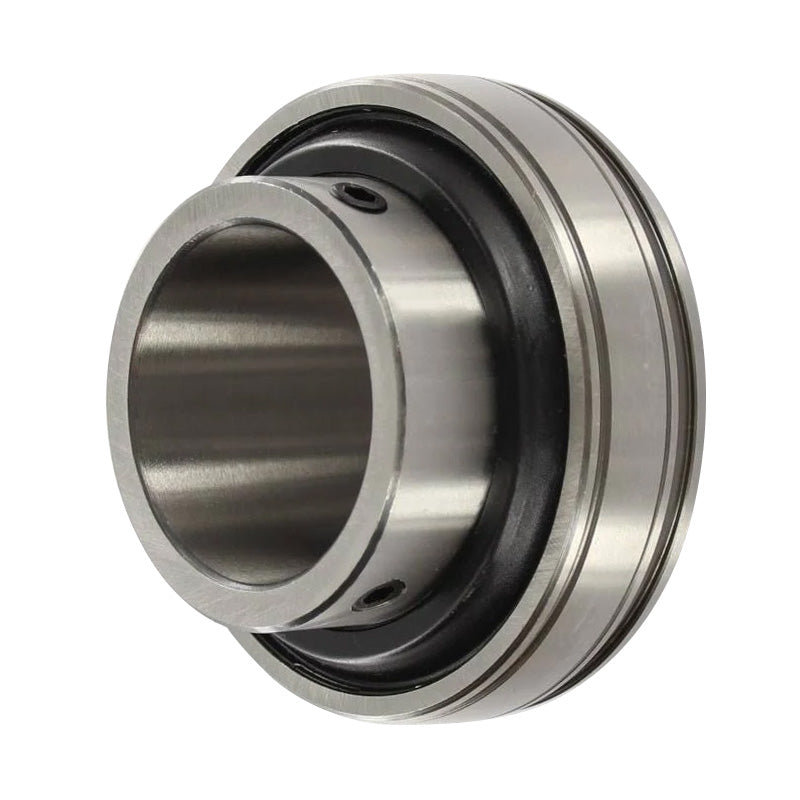

RHP T1090-3-7/16G Triple Seal Bearing Insert 3-7/16 inch Bore Grub Screw Type 160mm Outside Diameter
RHP T1090-3-7/16G Triple Seal Bearing Insert 3-7/16 inch Bore Grub Screw Type 160mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000G Series Triple Sealed Bearing Insert: This insert type is a full width bearing with a spherical outer diameter and is fitted with a triple seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress, they are particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer periods between maintenance. They have the benefit of being re-lubricatable after installation. There are 2 grub screws set 120 degrees apart to allow tightening against the shaft after installation. Benefits: Cost effective solution, re-lubricatable, grub screw fixing, Triple sealed |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 87.31mm = 3.437 (3-7/16) inch
- Outside Diameter:
- 160mm
- Style:
- T1090
Technical
Technical
| Bore | 3-7/16 inch |
|---|---|
| D | 6.2992 inch |
| C | 1.339 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| M | 0.47 inch |
| r | 0.079 inch |
| Dynamic load Cr | 16640 N |
| Static load Cor | 16080 N |
| Rec max speed | 300 rpm |
| Weight | 5 kg |
