SKU: TAMW.3845.EU

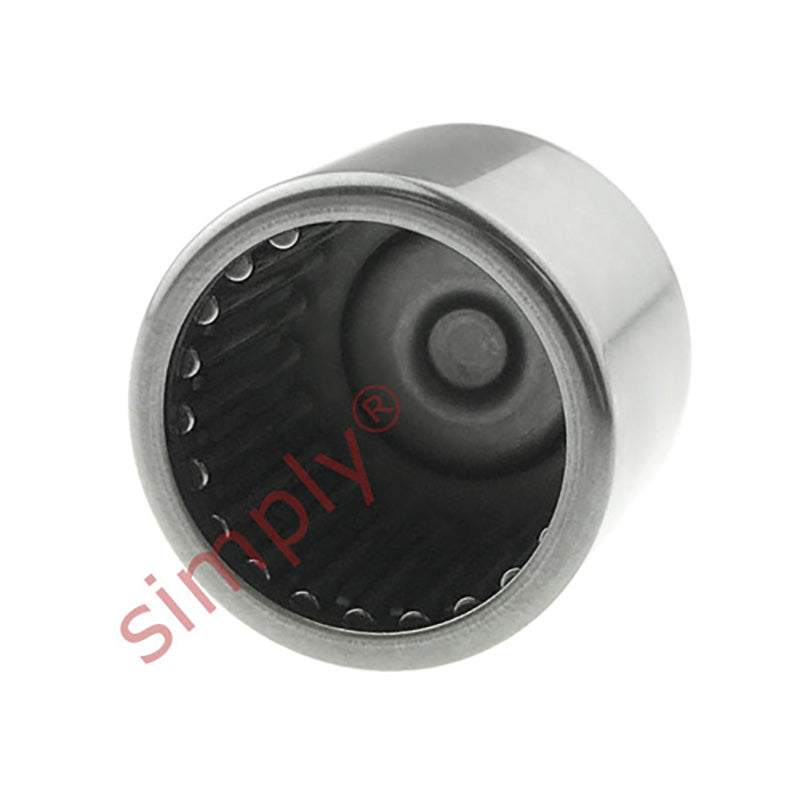

TAMW3845 Budget Needle Roller Bearing Closed End Type 38x48x45mm
TAMW3845 Budget Needle Roller Bearing Closed End Type 38x48x45mm
Out of stock
Share this product
Description
Description
|
Budget TAM Series Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38mm
- Outside Diameter:
- 48mm
- Width:
- 45mm
Technical
Technical
| Fw | 38mm |
|---|---|
| D | 48mm |
| C | 45mm |
| Dynamic load | 55700 N |
| Static load | 112000 N |
| Inner ring | IRT 3245-1 |
| Weight | 159 g |
