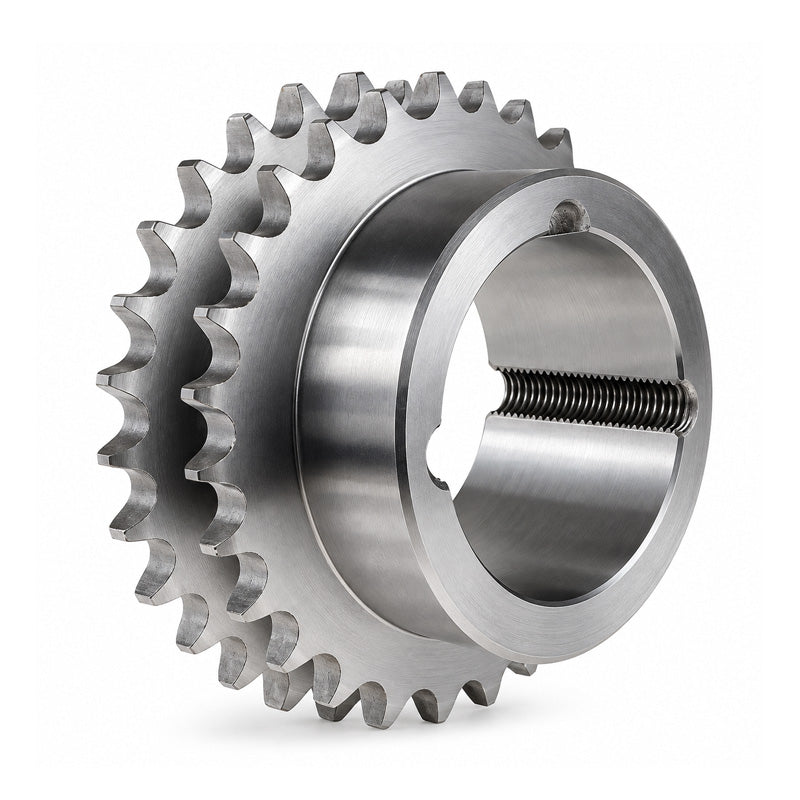

SKU: TBS-D-06B-20

20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€13.34 ex VAT
€13,34
ex VAT
Equivalent to: TS32-20 06B2 TS31-20 32-20
In stock

Quantity Price Breaks

5 €11.87
9 €11.21
19 €11.07
29 €10.94
49 €10.81
74 €10.67
99 €10.01
199 €9.87
249 €9.74
499 €9.60
999 €9.34
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
SKU: TBS-D-06B-20

20 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€13.34 ex VAT
€13,34
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

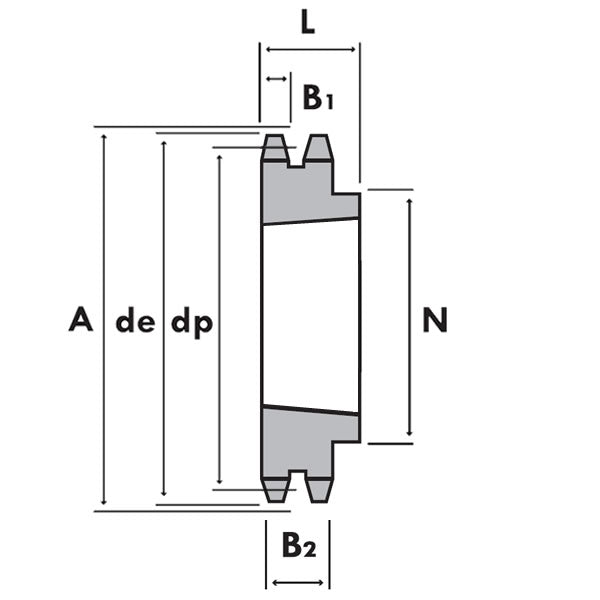

Technical

Tooth Radius r3 = 10mm
Chamfer c = 1mm
Tooth Width b1 = 5.2mm
Tooth Width B1 = 5.3mm
Tooth Width B2 = 15.4mm
Tooth Width B3 = 25.6mm
Pitch = 9.525mm
Width Between Inner = 5.72mm
Roller Diameter = 6.35mm
No. of Teeth = 20
Outer Diameter de = 64.3mm
Pitch Diameter dp = 60.89mm
Hub Diameter dm = 48mm
Length Through Bore A = 22mm
Reference = 32-20
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1008+tapered+locking+bush> = 1008 Click Here<
/a> =
