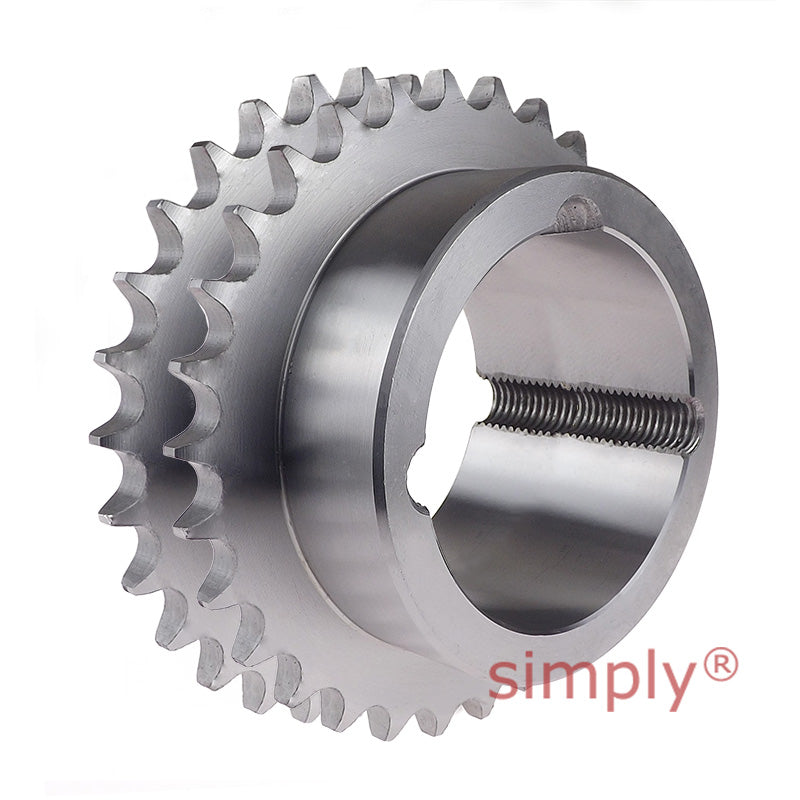

25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

SKU: TBS-D-06B-25

25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€18.73 ex VAT
€18,73
ex VAT
Equivalent to: TS32-25 06B2 TS31-25 32-25
In stock

Quantity Price Breaks

5 €16.67
9 €15.73
19 €15.55
29 €15.36
49 €15.17
74 €14.98
99 €14.05
199 €13.86
249 €13.67
499 €13.49
999 €13.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
SKU: TBS-D-06B-25

25 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€18.73 ex VAT
€18,73
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

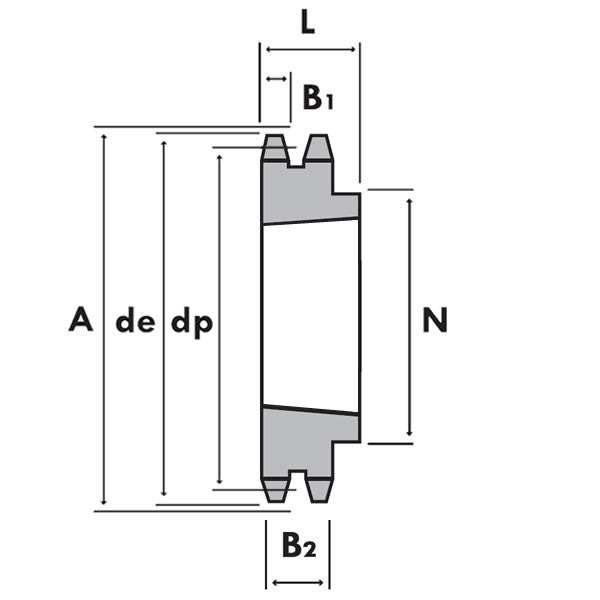

Technical

Tooth Radius r3 = 10mm
Chamfer c = 1mm
Tooth Width b1 = 5.2mm
Tooth Width B1 = 5.3mm
Tooth Width B2 = 15.4mm
Tooth Width B3 = 25.6mm
Pitch = 9.525mm
Width Between Inner = 5.72mm
Roller Diameter = 6.35mm
No. of Teeth = 25
Outer Diameter de = 80mm
Pitch Diameter dp = 76.02mm
Hub Diameter dm = 64mm
Length Through Bore A = 25mm
Reference = 32-25
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1210+tapered+locking+bush> = 1210 Click Here<
/a> =
