SKU: TBS-D-08B-57

57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€79.35 ex VAT
€79,35
ex VAT
Equivalent to: TS42-57 08B2 TS41-57 41-57
In stock

Quantity Price Breaks

5 €70.62
9 €66.65
19 €65.86
29 €65.07
49 €64.27
74 €63.48
99 €59.51
199 €58.72
249 €57.93
499 €57.13
999 €55.55
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
SKU: TBS-D-08B-57

57 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€79.35 ex VAT
€79,35
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

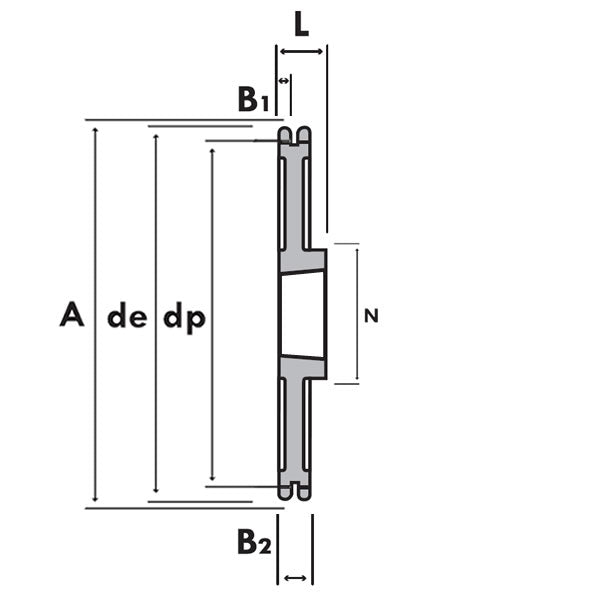

Technical

Tooth Radius r3 = 13mm
Chamfer c = 1.3mm
Tooth Width b1 = 7mm
Tooth Width B1 = 7.2mm
Tooth Width B2 = 21mm
Tooth Width B3 = 34.9mm
Pitch = 12.7mm
Width Between Inner = 7.75mm
Roller Diameter = 8.51mm
No. of Teeth = 57
Outer Diameter de = 236.4mm
Pitch Diameter dp = 230.54mm
Hub Diameter dm = 100mm
Length Through Bore A = 32mm
Reference = 42-57
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2012+tapered+locking+bush> = 2012 Click Here<
/a> =
