SKU: TBS-D-12B-17
17 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €35.10 ex VAT
- Sale price
- €35,10
- Regular price
-
In stock
Quantity Price Breaks
5
€31.24
9
€29.48
19
€29.13
29
€28.78
49
€28.43
74
€28.08
99
€26.33
199
€25.97
249
€25.62
499
€25.27
999
€24.57
SKU:
TBS-D-12B-17
17 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €35.10 ex VAT
- Sale price
- €35,10
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

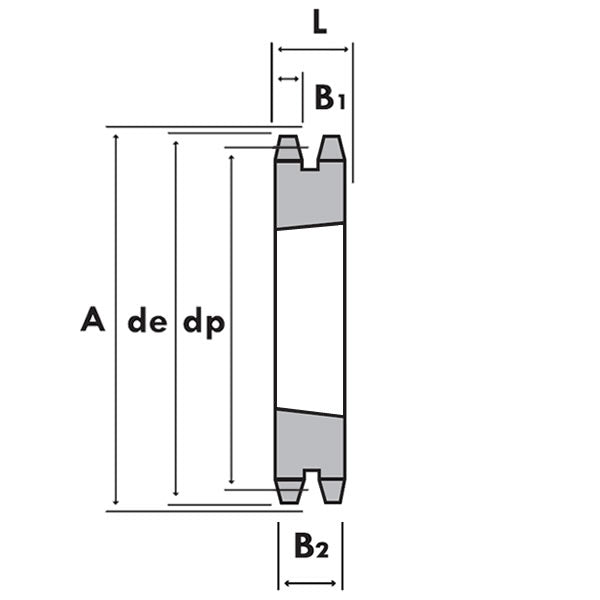

| No. of Teeth | = | 17 |
| Pitch Diameter dp | = | 103.68mm |
| Outer Diameter de | = | 112mm |
| Diameter Over Chain A | = | 120mm |
| Hub Diameter N | = | mm |
| Tooth Width B2 | = | 30.3mm |
| Bore Length L | = | 25.4mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1610+taperlock" | = | > |
| 1610< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 1.652 kg | = | N/A |
