SKU: TBS-DS-10B-15
15 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €23.39 ex VAT
- Sale price
- €23,39
- Regular price
-
Not in stock
Quantity Price Breaks
5
€20.82
9
€19.65
19
€19.41
29
€19.18
49
€18.95
74
€18.71
99
€17.54
199
€17.31
249
€17.07
499
€16.84
999
€16.37
SKU:
TBS-DS-10B-15
15 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €23.39 ex VAT
- Sale price
- €23,39
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

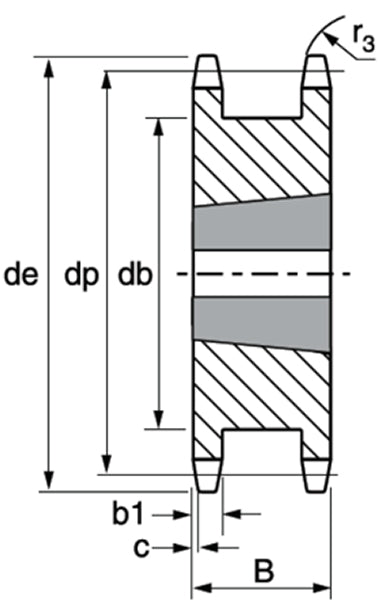

Technical
| No. of Teeth | = | 15 |
| Pitch Diameter dp | = | 76.36mm |
| Outer Diameter de | = | 83mm |
| Hub Diameter N | = | 60mm |
| Width B | = | 36.5mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1210+taperlock" | = | > |
| 1210< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 0.448 kg | = | N/A |
