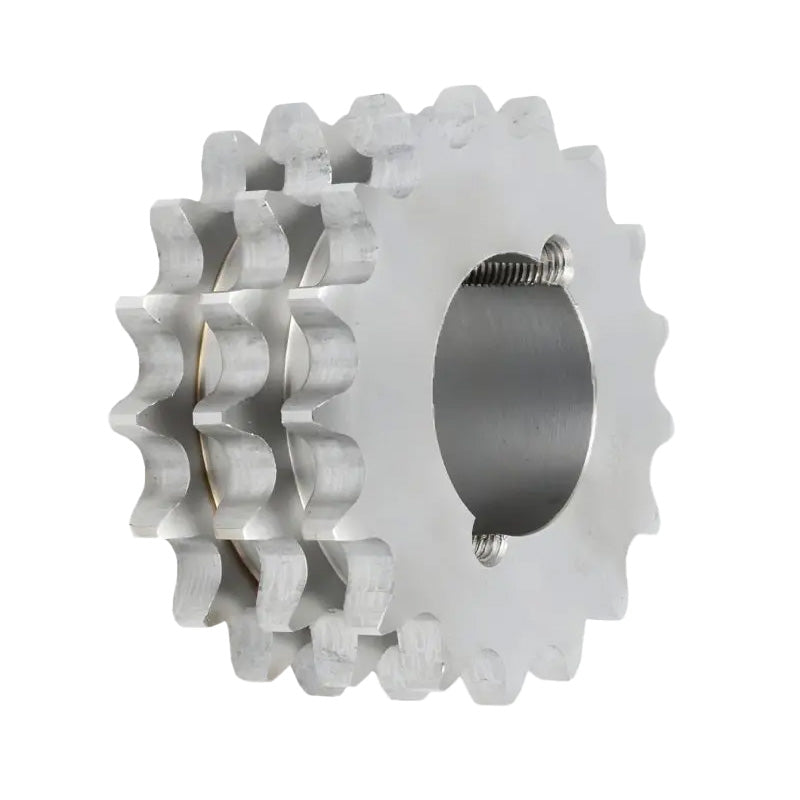

19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-08B-19

19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€23.39 ex VAT
€23,39
ex VAT
Equivalent to: TS43-19 08B3 TS41-19 41-19
In stock

Quantity Price Breaks

5 €20.82
9 €19.65
19 €19.41
29 €19.18
49 €18.95
74 €18.71
99 €17.54
199 €17.31
249 €17.07
499 €16.84
999 €16.37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-08B-19

19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€23.39 ex VAT
€23,39
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 13mm
Chamfer c = 1.3mm
Tooth Width b1 = 7mm
Tooth Width B1 = 7.2mm
Tooth Width B2 = 21mm
Tooth Width B3 = 34.9mm
Pitch = 12.7mm
Width Between Inner = 7.75mm
Roller Diameter = 8.51mm
No. of Teeth = 19
Outer Diameter de = 81.7mm
Pitch Diameter dp = 77.16mm
Length Through Bore A = 34.9mm
Reference = 43-19
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1210+tapered+locking+bush> = 1210 Click Here<
/a> =

Downloads
