SKU: TEN-ARM-SE27-DUN

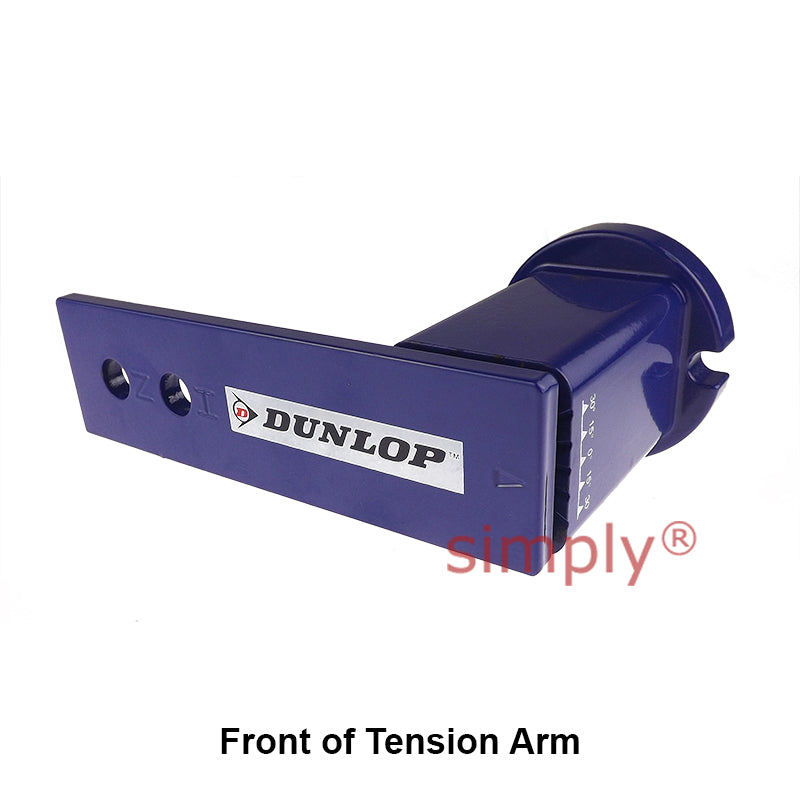

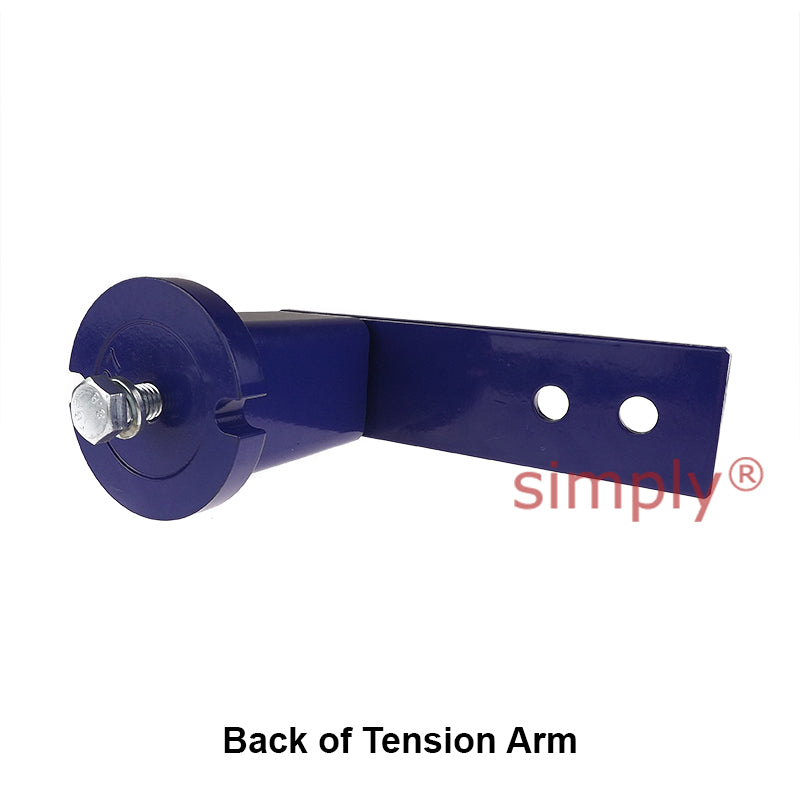

Dunlop SE27 Chain and V-Belt Tension Arm
- Regular price
- €55.14 ex VAT
- Sale price
- €55,14
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€49.07
5
€46.32
9
€45.77
19
€45.21
49
€44.66
74
€44.11
99
€41.36
199
€40.80
249
€40.25
499
€39.70
999
€38.60
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C

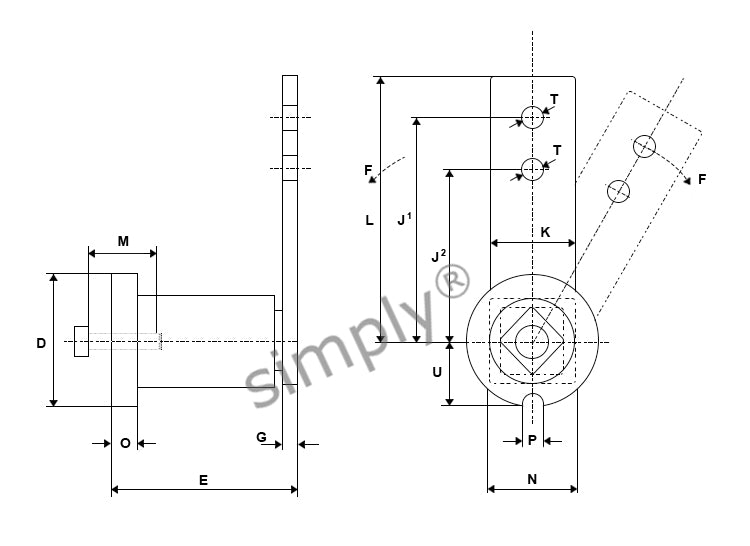

Technical
| Part No. | = | SE27 |
| D | = | 78mm |
| E | = | 108 (+2/-0.5)mm |
| G | = | 8mm |
| H | = | M12 |
| J< | = | sup> |
| 1< | = | /sup> |
| = | 130mm | |
| J< | = | sup> |
| 2< | = | /sup> |
| = | 130mm | |
| K | = | 50mm |
| L | = | 155mm |
| M | = | 40mm |
| N | = | 52mm |
| O | = | 15mm |
| P | = | 10.5mm |
| T | = | 12.5mm |
| U | = | 34.3mm |
