SKU: THAP300E/K10-SKF

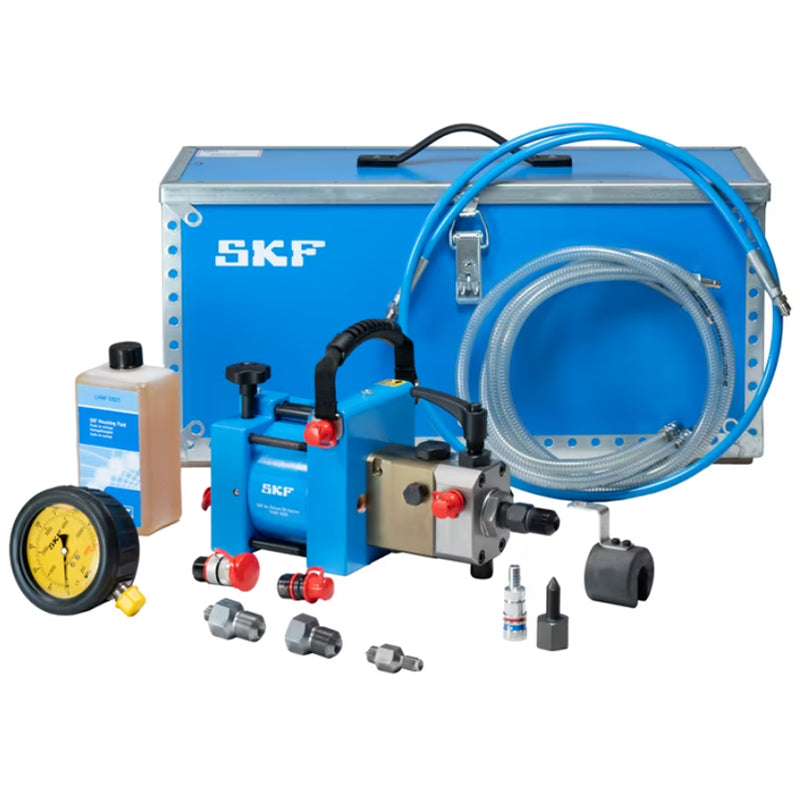

SKF THAP300E/K10 Air-driven Pump Set (upto 3000 bar)
- Regular price
- €9.099.27 ex VAT
- Sale price
- €9.099,27
- Regular price
-
Not in stock
Quantity Price Breaks
10
€8.098.35
19
€7.643.39
29
€7.552.39
39
€7.461.40
49
€7.370.41
74
€7.279.42
99
€6.824.45
199
€6.733.46
249
€6.642.47
499
€6.551.47
999
€6.369.49
SKU:
THAP300E/K10-SKF
SKF THAP300E/K10 Air-driven Pump Set (upto 3000 bar)
- Regular price
- €9.099.27 ex VAT
- Sale price
- €9.099,27
- Regular price
-
Technical
| --- | = | Technical Information |
| Maximum pressure | = | 300 Mpa (3000 bar) |
| Volume per stroke | = | 0.83 ml |
| Air Pressure | = | 3-7 bar |
| Air Pressure Limiter | = | Yes, 7 bar (Max) |
| Air Consumption | = | 200 l/min |
| Pressure Ratio | = | 1:500 |
| Pressure Gauge | = | Optional |
| Oil Container | = | No |
| Oil Outlet | = | G 3/4 thread |
| Oil Viscosity | = | 1500mm (Max) |
| Operating Temperature | = | 0 - 45 deg C |
| --- | = | Dimensions and Weights |
| Dimensions | = | 171x405x202mm |
| Case Dimensions | = | 690x245x310mm |
| Product Weight | = | 13 kg |
| Total Product Weight | = | 21.5 kg |
| --- | = | Product Contents |
| 1x | = | Air driven pump (300 MPa) |
| 2x | = | Low pressure hoses with couplings 1.5m (4.9ft) |
| 1x | = | Air hose coupling (f) |
| 1x | = | Mounting fluid 1L (0.22 gal) |
| 1x | = | Pressure gauge (400 MPa) |
| 1x | = | Protection sleeve (TMJG S100) |
| 1x | = | Protection device |
| 1x | = | Nipple G3/4 male, M16x1.5 cone female (400 MPa) |
| 1x | = | High pressure hose (300 MPa) |
| 2x | = | M16x1.5 cone male, 2m (6.5 ft.) |
| 1x | = | Quick connection coupling, M16x1.5 cone female (300 MPa) |
| 1x | = | Quick connection nipple, M16x1.5 cone female (300 MPa) |
| 1x | = | Nipple M16x1.5 cone male, G1/4 male (400 MPa) |
| 1x | = | Nipple M16x1.5 cone male, G3/4 male (400 MPa) |
| 1x | = | Instructions for use |
| 1x | = | Carrying case |
