SKU: TKRS41-SKF

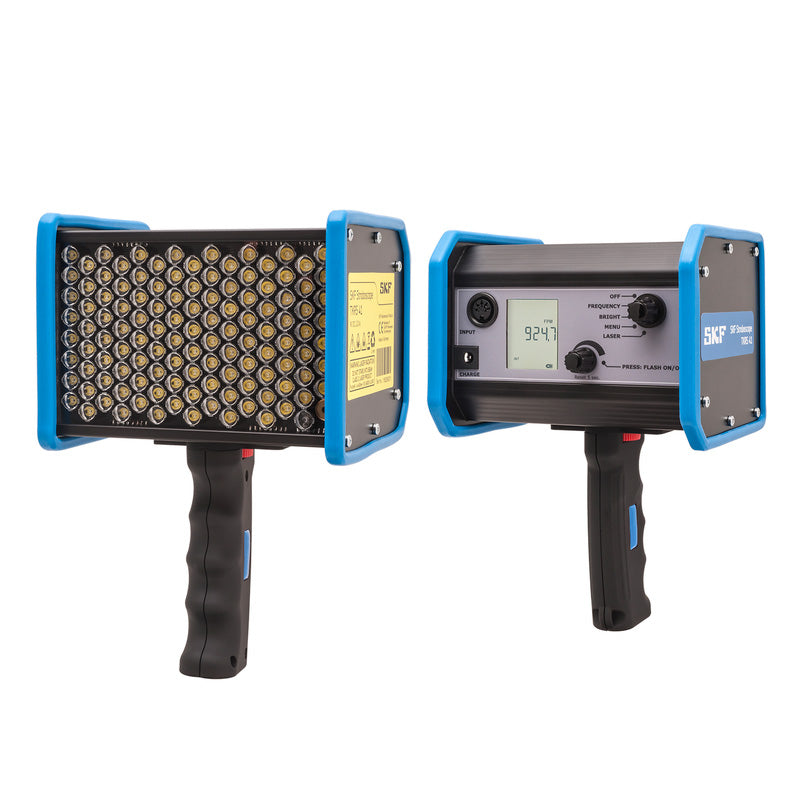

SKF TKRS41 Stroboscope 30-300000 flashes per minute
- Regular price
- €3.809.91 ex VAT
- Sale price
- €3.809,91
- Regular price
-
Quantity Price Breaks
SKF TKRS41 Stroboscope 30-300000 flashes per minute
- Regular price
- €3.809.91 ex VAT
- Sale price
- €3.809,91
- Regular price
-
Description
SKF TKRS Series: The SKF Stroboscopes are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They allow such applications as fan blades, couplings, gear wheels, machine tool spindles and belt drives to be inspected while running. TKRS stroboscopes are useful for ODR programmes and are an essential instrument for maintenance technicians. Phase shift mode enables the viewing of the object of interest to be rotated to the correct position for viewing, especially useful for gear wheels and fan blade inspection. For ease of use for extended periods, they are equipped with a tripod mounting thread.
Note:Ergonomic controls enable the flash rate to be set in a matter of seconds. Supplied in a sturdy carrying case with universal charger
Technical
| Flash rate range | = | 30 to 300000 flashes per minute (f/min) |
| Flash rate accuracy | = | +/-0,02% (+/-1 digit / +/-0,025us) |
| Flash setting and display resolution | = | +/-0,1 (30 to 999.9 f/min) < |
| br> | = | +/-1,0 (1 000 to 9 999 f/min)< |
| br> | = | +/-10 (10 000 to 300 000 f/min) |
| Tachometer range | = | 30 to 300000 r/min |
| Tachometer accuracy | = | +0,02% or +1 digit whichever is greater |
| Flash source | = | 118 LEDs |
| Flash duration | = | adjustable: 0,025 deg - 3,0 deg |
| Light power | = | 8000 lux at 1 deg flash duration and 0,3 m (12 in) distance |
| Flash colour | = | approx. 5000 - 8000 K |
| Power Source | = | Li-ion battery (rechargeable) Continuous operation with power supply |
| Run time ca. per change | = | ca. 2:30 h at 0,50 deg (~4 000 lux) ca. 5:00 h at 0,25 deg (~2 000 lux) |
| Charge and power supply | = | 110-230V, 50/60Hz, EU/US/UK/AUS plugs |
| Display | = | Multi-line backlight LCD |
| Controls | = | Mode selector switch and rotary/push knob |
| External tirgger input | = | 3-30 V / max. 5 mA (isolated optocoupler)< |
| br> | = | DIN 41524 5-pin standard connector< |
| br> | = | Uout = 24 VDC, 60 mA |
| External trigger range | = | 0 to 300,000 f/min |
| Housing Material | = | Alluminium |
| Instrument dimensions | = | 150 x 130 x 112mm ( 6.0 x 5.1 x 4.4 inch) |
| Case dimensions | = | 345 x 165 x 270mm (13.6 x 6.5 x 10.6 inch) |
| Unit weight | = | 1,15 kg (2.53 lb) |
| Total weight | = | 2,4 kg (5.3 lb) |
| Operating temperature | = | 0 to 40 deg C (32 to 104 F) |
| Type of protection for indication only | = | IP30 |
