• SKF TMMA80 Mechanical EasyPull 52-200mm / 2.0-7.8in
1 1

SKU: TMMA80-SKF

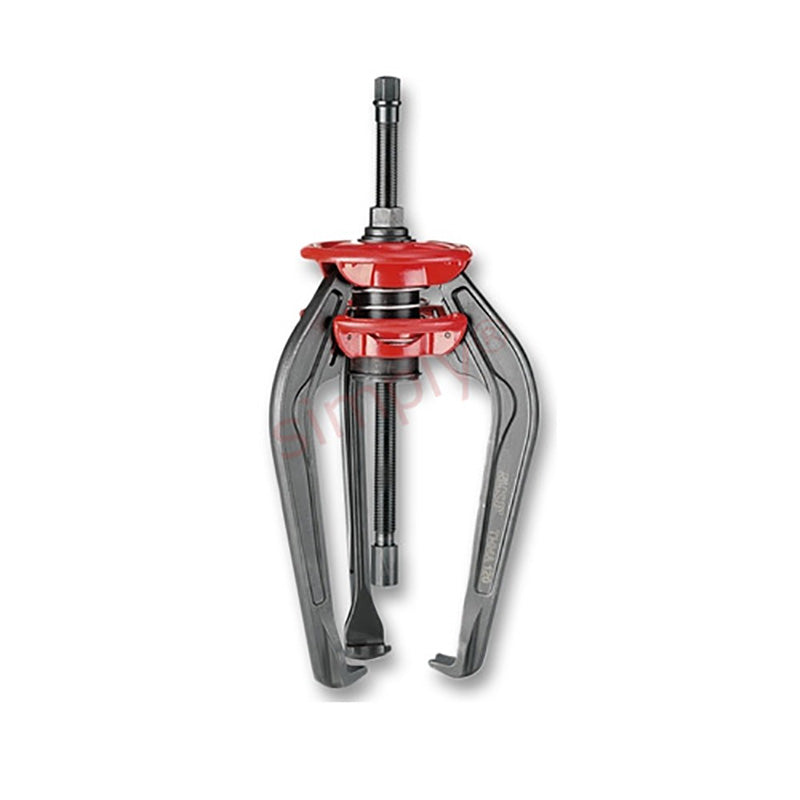

SKF TMMA80 Mechanical EasyPull 52-200mm / 2.0-7.8in

SKF TMMA80 Mechanical EasyPull 52-200mm / 2.0-7.8in
€606,19 ex VAT
€606,19 ex VAT
Sale Sold out

Equivalent to: TMMA5

In stock

Price Break
10+ €460,67
19+ €434,79
29+ €429,62
39+ €424,44
49+ €419,26
74+ €414,09
99+ €388,21
199+ €383,03
249+ €377,86
499+ €372,68
999+ €362,33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Mechanical EasyPull TMMA Series: Equipped with spring-operated arms and a solid design, SKF's patented EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement. The unique red rings spring-operated opening mechanism allows the EasyPull to be placed behind the component with one movement of the hands
Benefits: Sturdy design allows dismounting of components even in the tightest application in a safe manner. Double hexagonal heads allow easier application of withdrawal force.
Note: Self-locking arms help prevent the risk of puller slipping under load
Brand / Quality:
SKF - High Quality
Technical
Width of Grip External, min 52mm (2.0 in.)
Width of Grip External, max 200mm (7.8 in.)
Effective Arm Length 200mm (7.8 in.)
Maximum Withdrawal Force 80 kN (9.0 ton US)
Claw Height 9.8mm (0.39 in.)
Claw Length 18mm (0.7 in.)Claw Width
28mm (1.1 in.) Hexagon on Puller or Adapter
30mm Hexagon on Mechanical Spindle
22mm Max Torque
175 Nm (125 lbf ft) Diameter Nose Piece
26mm (1.0 in.) N/A
