SKU: TMMS160-SKF

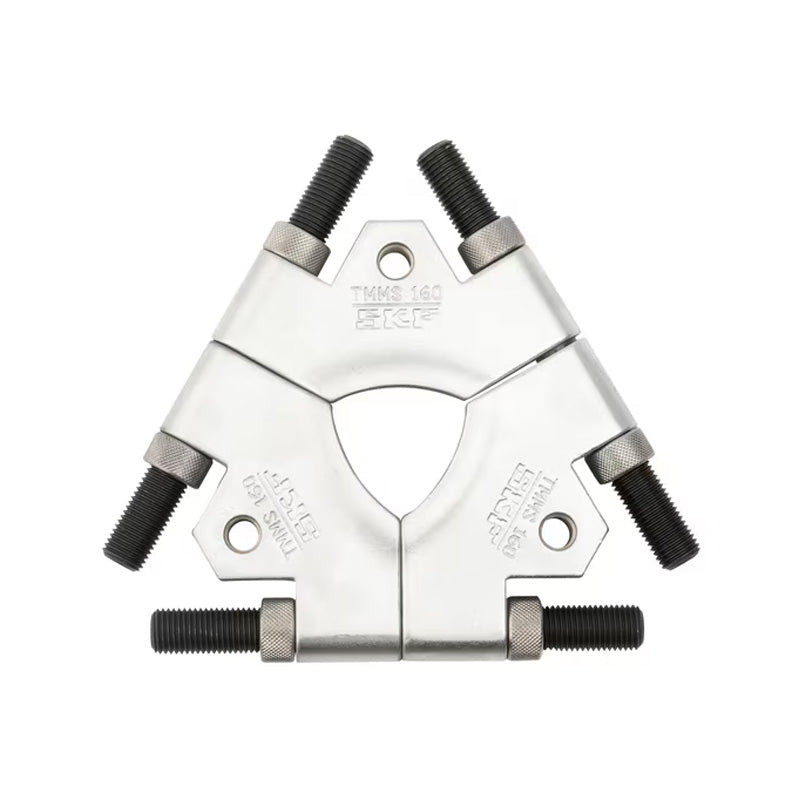

SKF TMMS160 Tri-section Pulling Plates 50x160x30mm
SKF TMMS160 Tri-section Pulling Plates 50x160x30mm
Regular price
€476,26
ex VAT
Regular price
Sale price
€476,26
ex VAT
In stock
Price Break
10+
€361,93
19+
€341,60
29+
€337,53
39+
€333,47
49+
€329,40
74+
€325,33
99+
€305,00
199+
€300,93
249+
€296,87
499+
€292,80
999+
€284,67
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Tri-Section Pulling Plates TMMS Series: The tri-section pulling plates, TMMS series, are especially designed for use in combination with three-armed pullers. The plates grip behind the inner ring of the bearing. This prevents the pulling forces from being transmitted through the outer ring and the rolling elements, minimising the risk of bearing damage. The unique design of the TMMS series allows the application of force on most efficient point; the inner ring, and thereby requiring less force for dismounting than when pulling on the outer ring. The firm grip behind the bearing's inner ring ensures that the pulling forces are only transmitted through the inner ring and not through the outer ring or the rolling elements, preventing bearing damage. Benefits: Special wig shape allows the plates to be easily inserted between bearing and the shoulder on the shaft. Note: Suitable for use in combination with any three-armed puller |
- Brand / Quality:
- SKF - High Quality
Technical
Technical

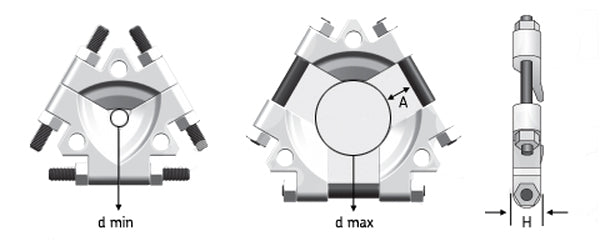

| d min | 50mm (2.0 in.) |
|---|---|
| d max | 160mm (6.3 in.) |
| A | 45-73mm (1.8-2.9 in.) |
| H | 30mm (1.2 in.) |
