SKU: TS-N1/2-SE27-DUN

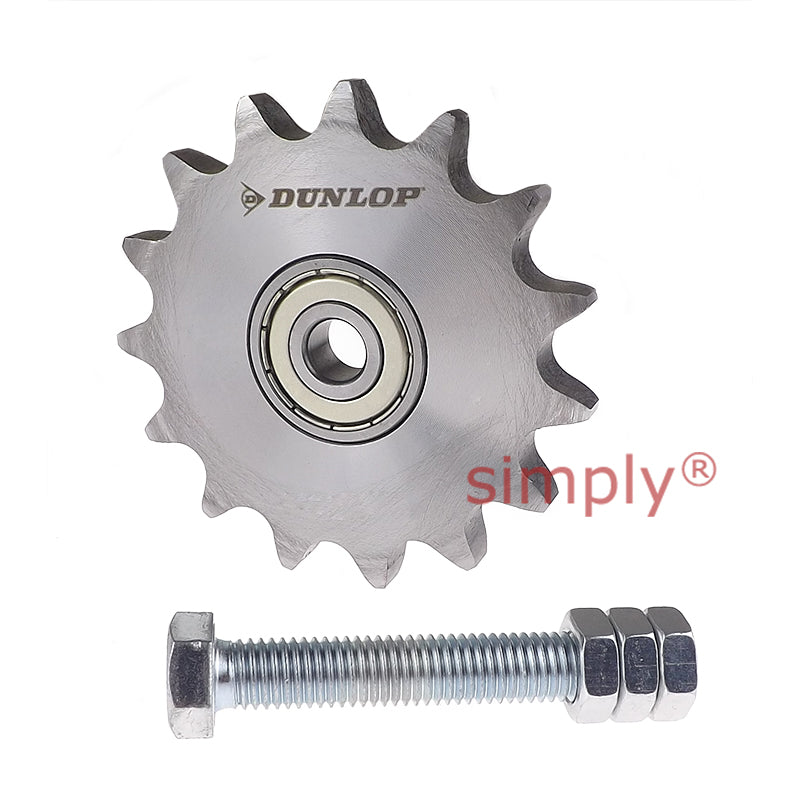

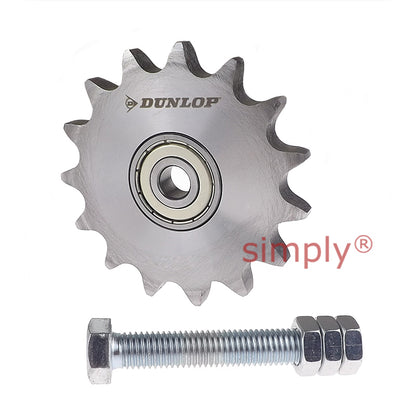

Dunlop 08BX15T N1/2 inch Sprocket for SE27 Tension Arm
- Regular price
- €15.78 ex VAT
- Sale price
- €15,78
- Regular price
-
In stock
Quantity Price Breaks
3
€14.04
5
€13.26
9
€13.10
19
€12.94
49
€12.78
74
€12.62
99
€11.84
199
€11.68
249
€11.52
499
€11.36
999
€11.05
SKU:
TS-N1/2-SE27-DUN
Dunlop 08BX15T N1/2 inch Sprocket for SE27 Tension Arm
- Regular price
- €15.78 ex VAT
- Sale price
- €15,78
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N1/2 inch |
| No of Teeth | = | 15 |
| W | = | M12mm |
| L | = | 80mm |
| A | = | 12mm |
| B | = | 7.2mm |
| C | = | 12mm |
| D | = | 61.08mm |
| Torque Hex Nut 0.5d | = | 35 Nm |
| Adjusting Range Track R | = | 27-65mm |
| Size SE | = | 27 |
| To Fit Roller Chain ANSI | = | 40 |
| To Fit Roller Chain DIN 8187 | = | ISO 08 B |
