SKU: TS-N1/2SE15/18-DUN

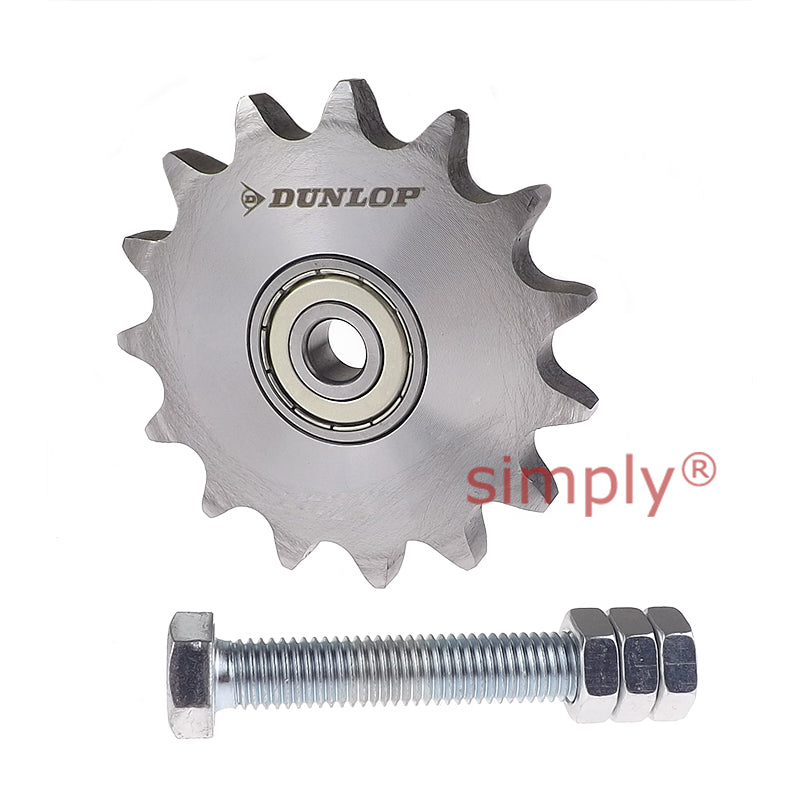

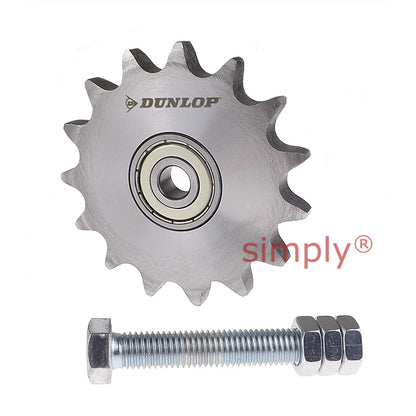

Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
- Regular price
- €14.39 ex VAT
- Sale price
- €14,39
- Regular price
-
In stock
Quantity Price Breaks
3
€12.81
5
€12.09
9
€11.94
19
€11.80
49
€11.66
74
€11.51
99
€10.79
199
€10.65
249
€10.50
499
€10.36
999
€10.07
SKU:
TS-N1/2SE15/18-DUN
Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
- Regular price
- €14.39 ex VAT
- Sale price
- €14,39
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N1/2 inch |
| No of Teeth | = | 15 |
| W | = | M10mm |
| L | = | 55mm |
| A | = | 10mm |
| B | = | 7.2mm |
| C | = | 9mm |
| D | = | 61.08mm |
| Torque Hex Nut 0.5d | = | 20 Nm |
| Adjusting Range Track R | = | 23-44mm |
| Size SE | = | 18 |
| To Fit Roller Chain ANSI | = | 40 |
| To Fit Roller Chain DIN 8187 | = | ISO 08 B |
