SKU: TS-N1-SE38-DUN

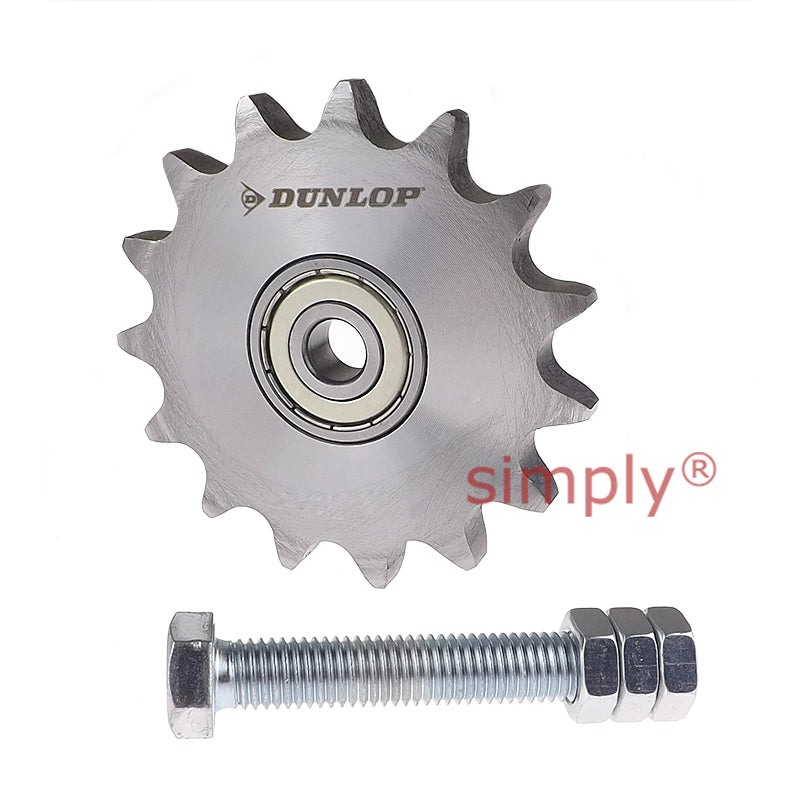

Dunlop 16BX13T N1 inch Sprocket for SE38 Tension Arm
- Regular price
- €26.99 ex VAT
- Sale price
- €26,99
- Regular price
-
Not in stock
Quantity Price Breaks
3
€24.02
5
€22.67
9
€22.40
19
€22.13
49
€21.86
74
€21.59
99
€20.24
199
€19.97
249
€19.70
499
€19.43
999
€18.89
SKU:
TS-N1-SE38-DUN
Dunlop 16BX13T N1 inch Sprocket for SE38 Tension Arm
- Regular price
- €26.99 ex VAT
- Sale price
- €26,99
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N1 inch |
| No of Teeth | = | 13 |
| W | = | M20mm |
| L | = | 100mm |
| A | = | 20mm |
| B | = | 16.1mm |
| C | = | 15mm |
| D | = | 106.14mm |
| Torque Hex Nut 0.5d | = | 172 Nm |
| Adjusting Range Track R | = | 38mm |
| Size SE | = | 38 |
| To Fit Roller Chain ANSI | = | 80 |
| To Fit Roller Chain DIN 8187 | = | ISO 16 B |
