SKU: TS-N3/4-SE38-DUN

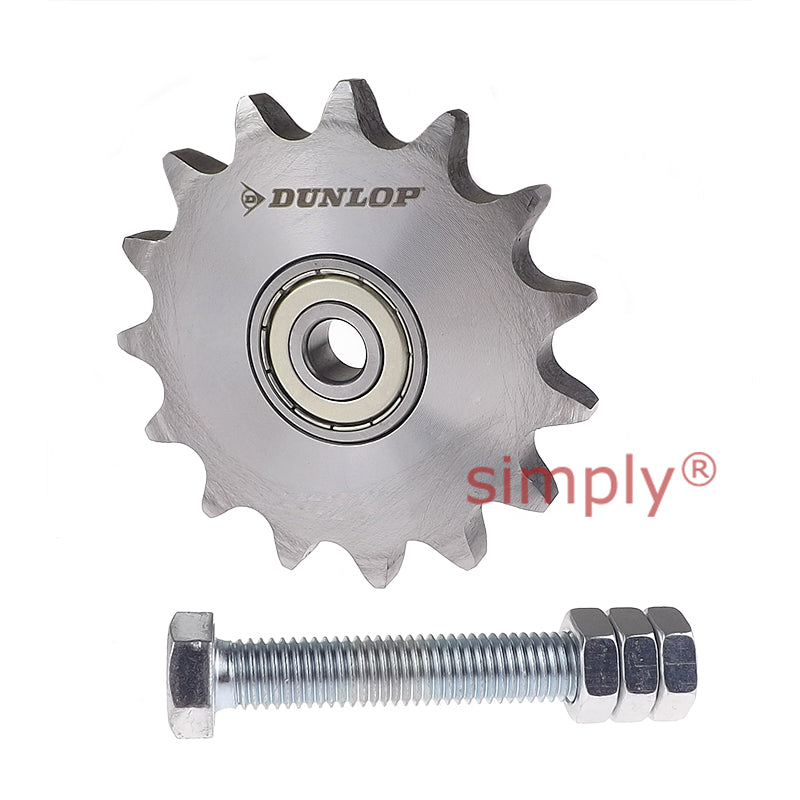

Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Not in stock
Quantity Price Breaks
3
€19.34
5
€18.25
9
€18.04
19
€17.82
49
€17.60
74
€17.38
99
€16.30
199
€16.08
249
€15.86
499
€15.65
999
€15.21
SKU:
TS-N3/4-SE38-DUN
Dunlop 12BX15T N3/4 inch Sprocket for SE38 Tension Arm
- Regular price
- €21.73 ex VAT
- Sale price
- €21,73
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N3/4 inch |
| No of Teeth | = | 15 |
| W | = | M20mm |
| L | = | 100mm |
| A | = | 20mm |
| B | = | 11.1mm |
| C | = | 15mm |
| D | = | 91.63mm |
| Torque Hex Nut 0.5d | = | 172 Nm |
| Adjusting Range Track R | = | 38mm |
| Size SE | = | 38 |
| To Fit Roller Chain ANSI | = | 60 |
| To Fit Roller Chain DIN 8187 | = | ISO 12 B |
