SKU: TS-N5/8-SE38-DUN

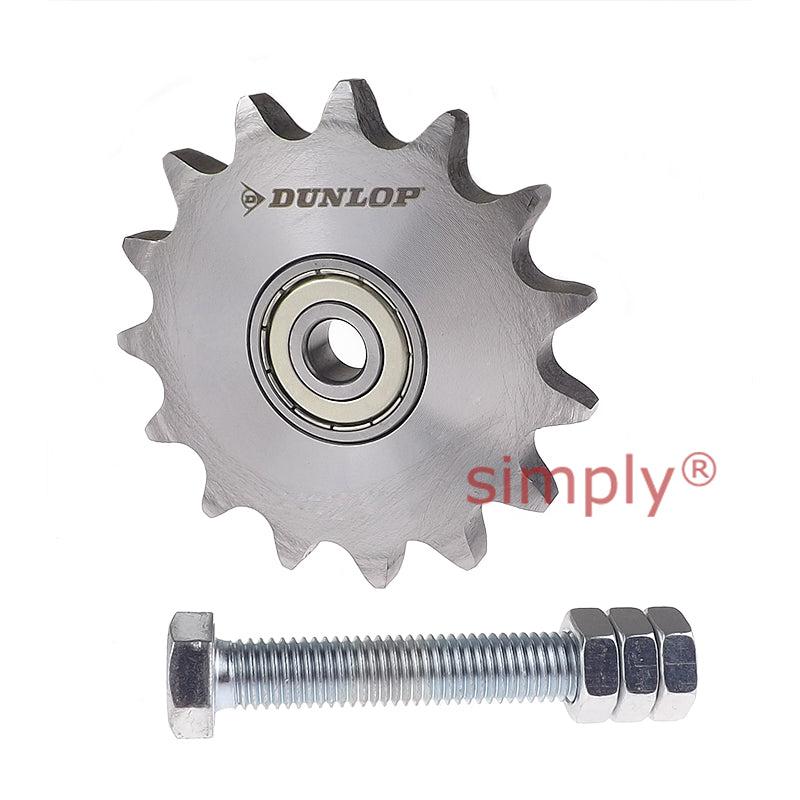

Dunlop 10BX15T N5/8 inch Sprocket for SE38 Tension Arm
- Regular price
- €16.34 ex VAT
- Sale price
- €16,34
- Regular price
-
Not in stock
Quantity Price Breaks
3
€14.54
5
€13.73
9
€13.56
19
€13.40
49
€13.24
74
€13.07
99
€12.26
199
€12.09
249
€11.93
499
€11.76
999
€11.44
SKU:
TS-N5/8-SE38-DUN
Dunlop 10BX15T N5/8 inch Sprocket for SE38 Tension Arm
- Regular price
- €16.34 ex VAT
- Sale price
- €16,34
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N5/8 inch |
| No of Teeth | = | 15 |
| W | = | M20mm |
| L | = | 100mm |
| A | = | 20mm |
| B | = | 9.1mm |
| C | = | 15mm |
| D | = | 76.36mm |
| Torque Hex Nut 0.5d | = | 172 Nm |
| Adjusting Range Track R | = | 38mm |
| Size SE | = | 38 |
| To Fit Roller Chain ANSI | = | 50 |
| To Fit Roller Chain DIN 8187 | = | ISO 10 B |
