SKU: TST-L-SNR

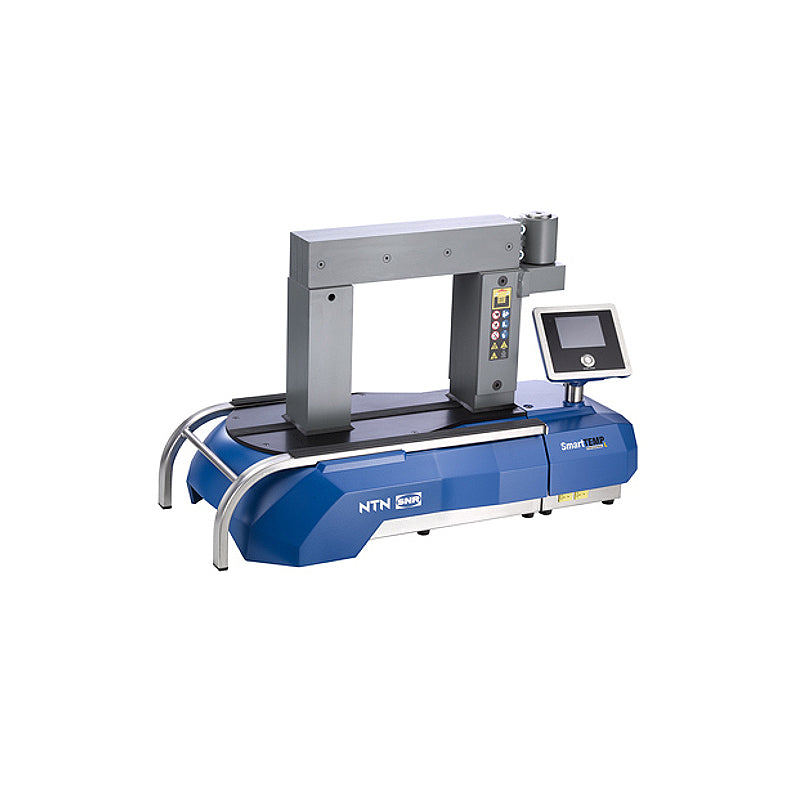

SNR Large SmartTEMP 400V Induction Heater for up to 200kg Bearings - Allow 2-3 Days
- Regular price
- €5.769.58 ex VAT
- Sale price
- €5.769,58
- Regular price
-
Quantity Price Breaks
SNR Large SmartTEMP 400V Induction Heater for up to 200kg Bearings - Allow 2-3 Days
- Regular price
- €5.769.58 ex VAT
- Sale price
- €5.769,58
- Regular price
-
Description
SNR SmartTEMP Induction Heaters: These heaters can heat parts such as bearings, sprockets, and other mechanical parts of the same weight. These heaters were designed for professional use and are suitable for both maintenance services and production lines. The SmartTEMP range heaters provide 4 dedicated heating modes: Temperature (one sensor), Temperature (two sensors), Ramp, and Timer, which can be adapted to suit specific parts or applications. Compared to standard heating devices, these SmartTemp heaters provide 30% savings in heating time and significantly reduce energy consumption. As we stock several SmartTemp heaters it is important to choose the correct heater. This can depend on several factors such as part weight, part dimensions, part sensitivity, required temperature range, electrical power and voltage
Benefits: Easy to use, High performance, Touchscreen interface
Technical
| Length | = | 695mm |
| Width | = | 330mm |
| Height | = | 475mm |
| Min bearing bore diameter | = | 20mm |
| Max bearing outer diameter | = | 600mm |
| Max power input | = | 8kVA |
| Max voltage | = | 400V |
| Max current | = | 20A |
| Frequency | = | 50Hz |
| Max temperature setup | = | 240 Deg C |
| Temperature holding at the end of cycle | = | Yes |
| Demagnetization | = | Yes |
| Max part weight | = | 200kg |
| Max width | = | 180mm |
| Weight | = | 85kg |
