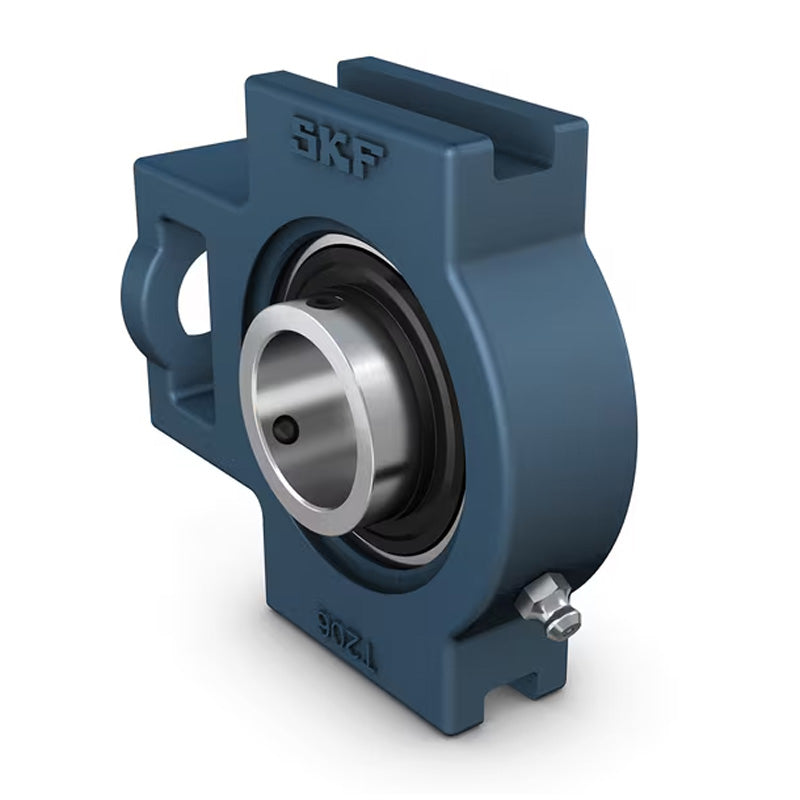

SKF TU1-1/16TF Grub Screw Type Take Up Unit 1-1/16 inch Bore
SKF TU1-1/16TF Grub Screw Type Take Up Unit 1-1/16 inch Bore
Out of stock
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 26.99mm = 1.063 (1-1/16) inch
- Style:
- TU
Technical
Technical
| d | 1-1/16 inch |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 28mm |
| B | 38.1mm |
| D1 | 22mm |
| H | 104mm |
| H1 | 89mm |
| H2 | 56mm |
| L | 114mm |
| L1 | 70mm |
| L2 | 10mm |
| L3 | 57mm |
| N | 37mm |
| N1 | 16mm |
| s1 | 22.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.3 kg |
