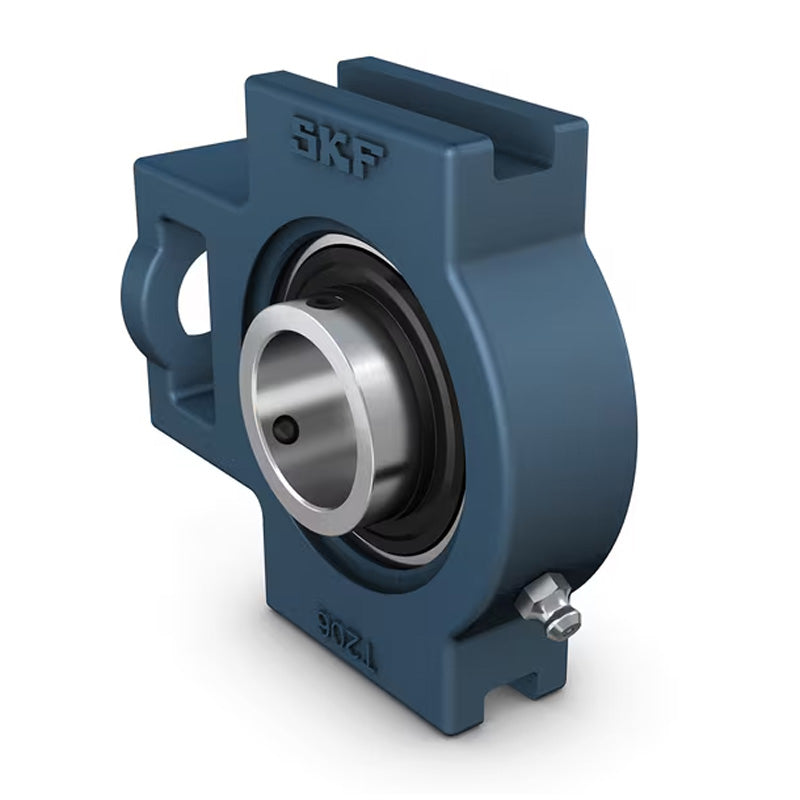

SKF TUL3/4TH Polyester Housing Food Industry Grub Screw Take Up Unit 3/4 inch
SKF TUL3/4TH Polyester Housing Food Industry Grub Screw Take Up Unit 3/4 inch
Out of stock
Description
Description
|
SKF Y-bearing Take Up Units for the Food Industry: Developed specifically for food and beverage applications. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- TUL
Technical
Technical
| d | 3/4 inch |
|---|---|
| A | 27.6mm |
| A1 | 12mm |
| A2 | 24.5mm |
| B | 31mm |
| H | 88mm |
| H1 | 76mm |
| H2 | 36mm |
| L | 99mm |
| L1 | 64mm |
| L2 | 46mm |
| G | M16 |
| G1 | 21mm |
| s1 | 18.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 10.8 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 16.5mm |
| A6 | 20.5mm |
| Weight | 0.33 kg |
| Compatible end cover closed | ECL204 |
| Compatible end cover open | ECL204-012B |
