SKU: UC.204-12.TS.CHAL

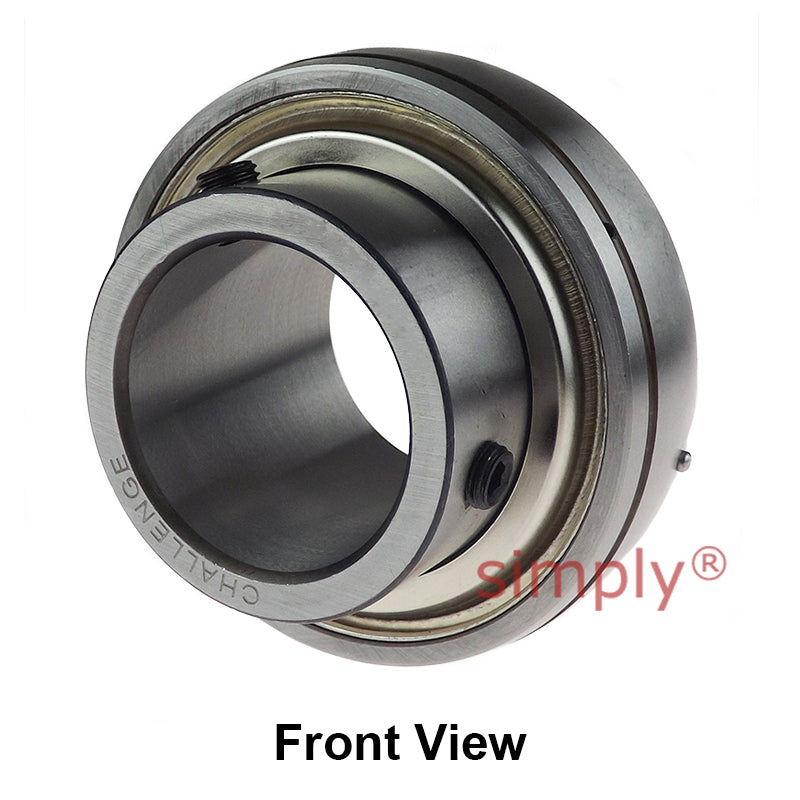

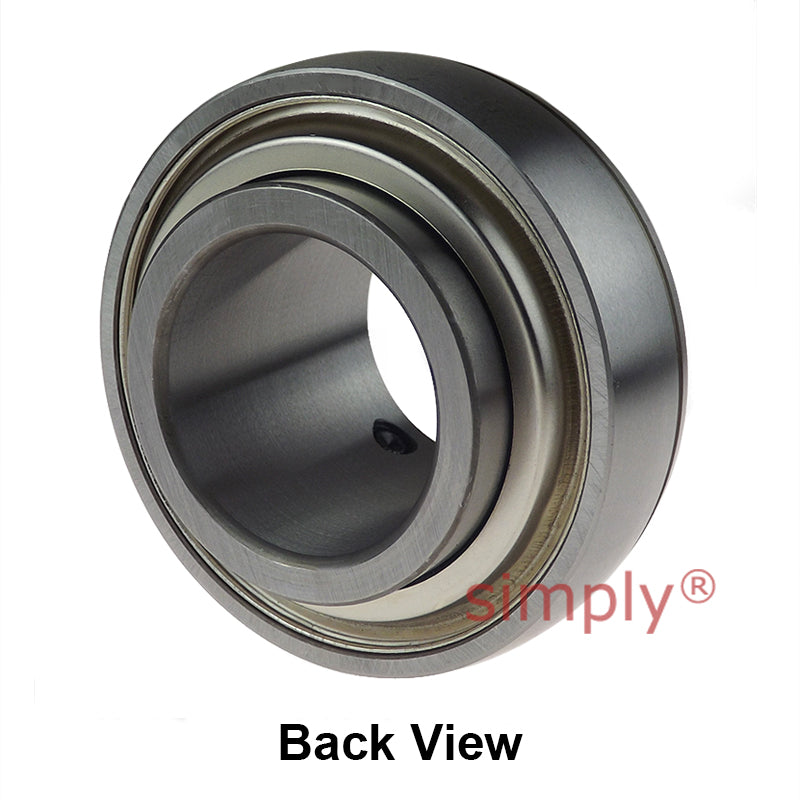

Challenge UC204-12 Imperial Insert with Grub Screws with 3/4 inch Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €13.51 ex VAT
- Sale price
- €13,51
- Regular price
-
In stock
Quantity Price Breaks
3
€12.02
5
€11.35
9
€11.21
19
€11.08
49
€10.94
74
€10.81
99
€10.13
199
€10.00
249
€9.86
499
€9.73
999
€9.46
SKU:
UC.204-12.TS.CHAL
Challenge UC204-12 Imperial Insert with Grub Screws with 3/4 inch Bore 47mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €13.51 ex VAT
- Sale price
- €13,51
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 3/4 inch |
| Outside Diameter D | = | 47mm |
| Overall Width Bi | = | 31mm |
| Inner Race Width Be | = | 17mm |
| Back of Bearing to Centre Line n | = | 12.7mm |
| Front of Bearing to Centre Line m | = | 18.3mm |
| Dimension G | = | 5mm |
| Grub Screws x 2 | = | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | = | 1000kg |
| Load Rating (Static) | = | 630kg |
| Max Speed | = | 4000 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
