SKU: UC.210.TS.CHAL
Challenge UC210 Metric Insert with Grub Screws with 50mm Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €39.95 ex VAT
- Sale price
- €39,95
- Regular price
-
In stock
Quantity Price Breaks
3
€35.56
5
€33.56
9
€33.16
19
€32.76
49
€32.36
74
€31.96
99
€29.96
199
€29.56
249
€29.16
499
€28.76
999
€27.97
SKU:
UC.210.TS.CHAL
Challenge UC210 Metric Insert with Grub Screws with 50mm Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €39.95 ex VAT
- Sale price
- €39,95
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing

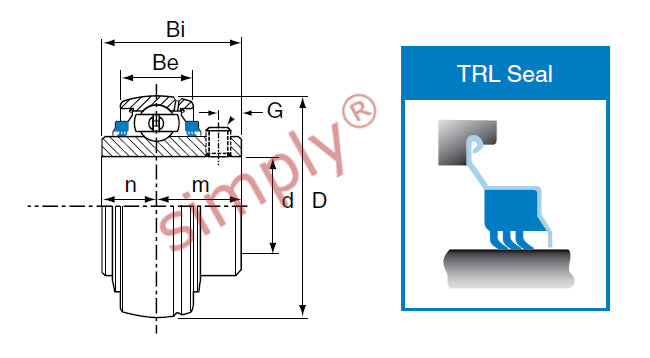

Technical
| Shaft Diameter d | = | 50mm |
| Outside Diameter D | = | 90mm |
| Overall Width Bi | = | 51.6mm |
| Inner Race Width Be | = | 24mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Front of Bearing to Centre Line m | = | 32.6mm |
| Dimension G | = | 10mm |
| Grub Screws x 2 | = | M10x1.25mm |
| Load Rating (Dynamic) | = | 2750kg |
| Load Rating (Static) | = | 2020kg |
| Max Speed | = | 1800 rev/min |
| Grease Nipple Thread Size | = | M8 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
