SKU: UC.213.TS.CHAL

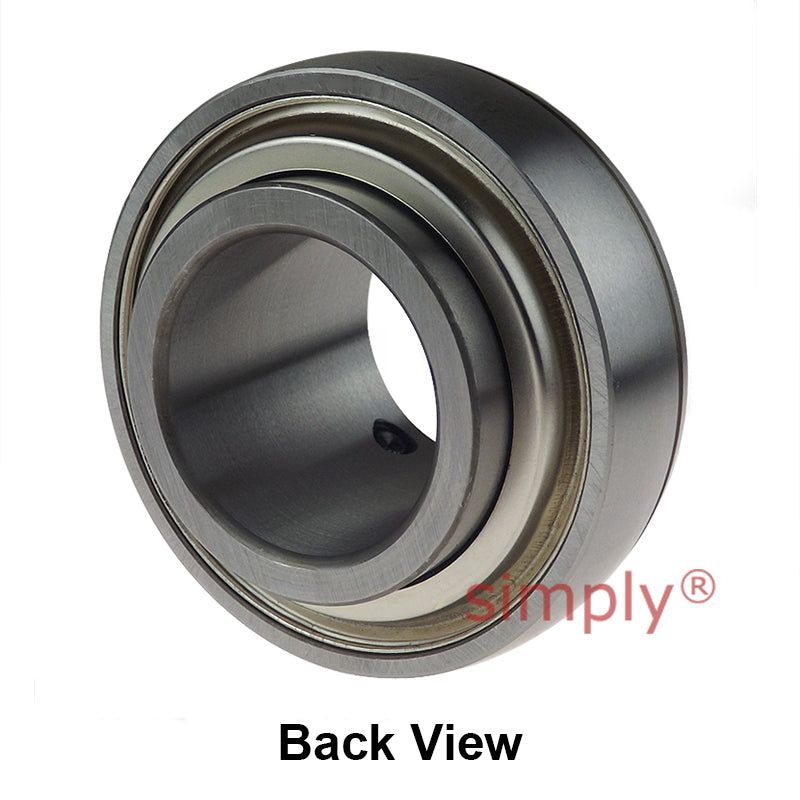

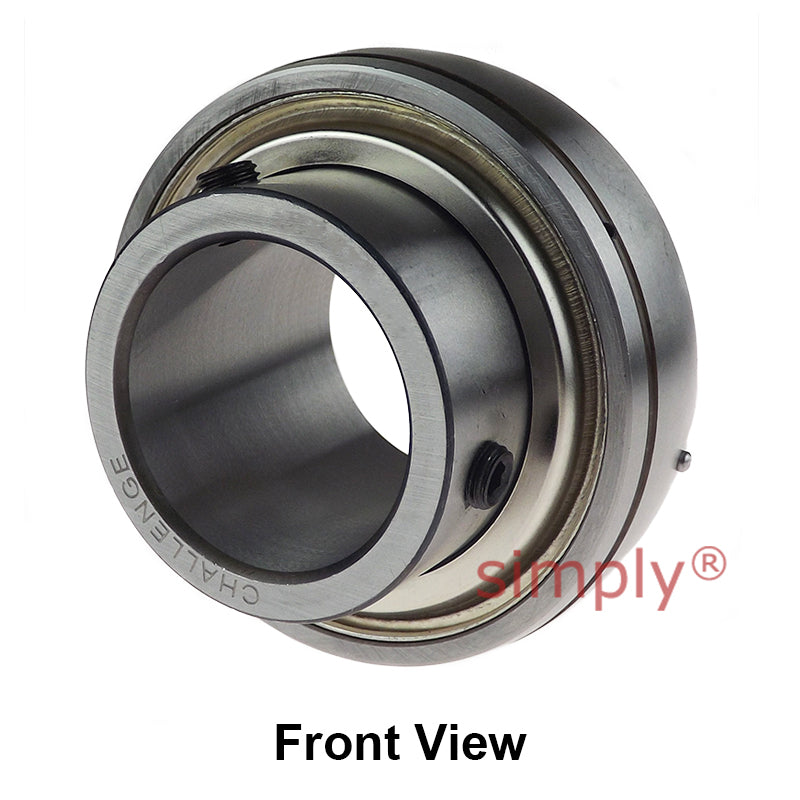

Challenge UC213 Metric Insert with Grub Screws with 65mm Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €97.67 ex VAT
- Sale price
- €97,67
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€86.93
5
€82.04
9
€81.07
19
€80.09
49
€79.11
74
€78.14
99
€73.25
199
€72.28
249
€71.30
499
€70.32
999
€68.37
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 65mm |
| Outside Diameter D | = | 120mm |
| Overall Width Bi | = | 65.1mm |
| Inner Race Width Be | = | 30mm |
| Back of Bearing to Centre Line n | = | 25.4mm |
| Front of Bearing to Centre Line m | = | 39.7mm |
| Dimension G | = | 10mm |
| Grub Screws x 2 | = | M10x1.25mm |
| Load Rating (Dynamic) | = | 4480kg |
| Load Rating (Static) | = | 3470kg |
| Max Speed | = | 1400 rev/min |
| Grease Nipple Thread Size | = | M8 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
