SKU: UC.215-47

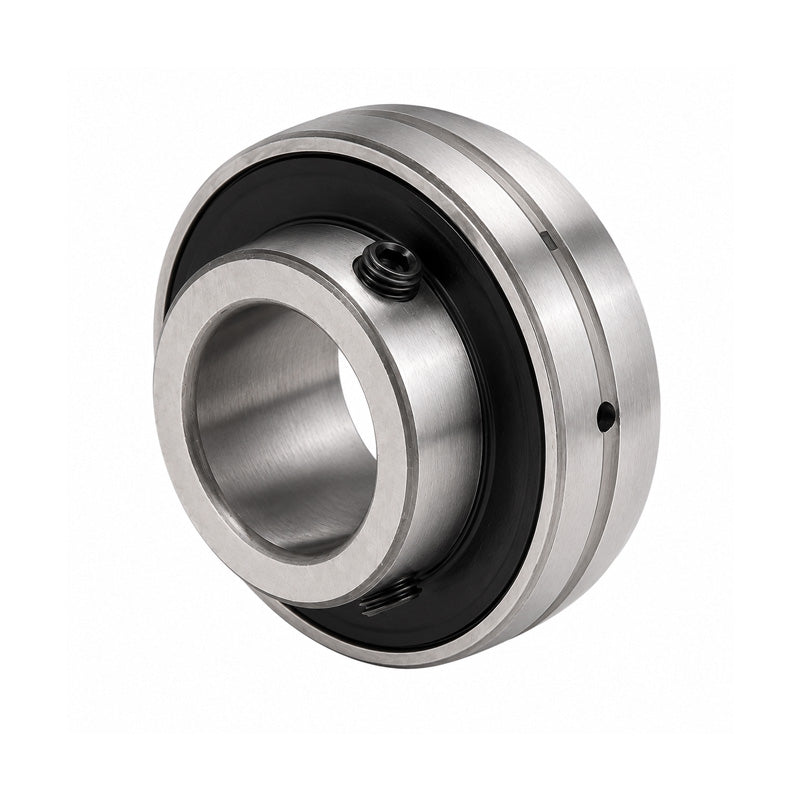

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia
- Regular price
- €81.41 ex VAT
- Sale price
- €81,41
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€72.45
4
€68.38
9
€67.57
19
€66.76
49
€65.94
99
€65.13
499
€61.06
999
€60.24
1999
€59.43
2999
€58.62
4999
€56.99
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-15/16 inch |
| D | = | 130mm |
| Bi | = | 77.8mm |
| Be | = | 30mm |
| n | = | 33.3mm |
| m | = | 44.5mm |
| G | = | 12mm |
| Grub screw | = | 7/16" |
| -20 UNF | = | Weight |
| 2.21 kg | = | Dynamic load |
| 5190 kgf | = | Static load |
| 4190 kgf | = | N/A |
