SKU: UC.218-56.TS.CHAL

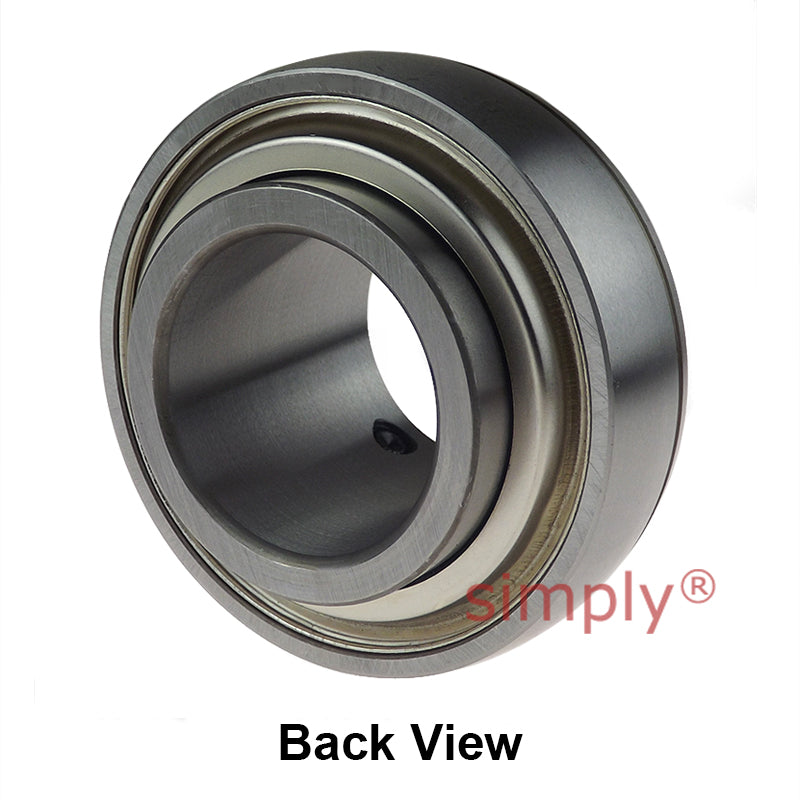

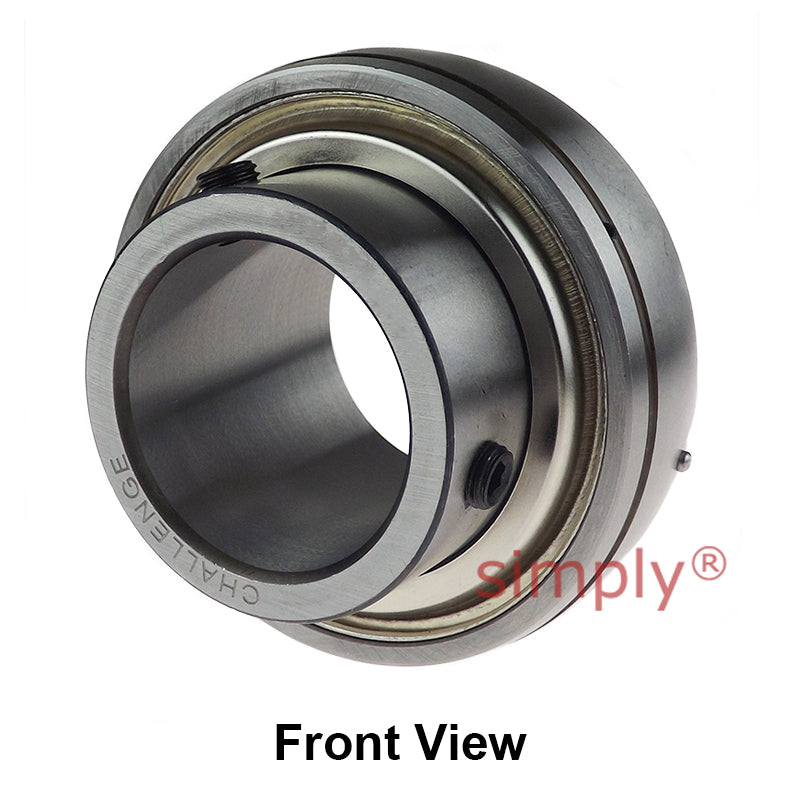

Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €378.95 ex VAT
- Sale price
- €378,95
- Regular price
-
In stock
Quantity Price Breaks
3
€337.27
5
€318.32
9
€314.53
19
€310.74
49
€306.95
74
€303.16
99
€284.21
199
€280.42
249
€276.63
499
€272.84
999
€265.27
SKU:
UC.218-56.TS.CHAL
Challenge UC218-56 Imperial Insert with Grub Screws with 3-1/2 inch Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €378.95 ex VAT
- Sale price
- €378,95
- Regular price
-
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 3-1/2 inch |
| Outside Diameter D | = | 160mm |
| Overall Width Bi | = | 96mm |
| Inner Race Width Be | = | 37mm |
| Back of Bearing to Centre Line n | = | 39.7mm |
| Front of Bearing to Centre Line m | = | 56.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | 1/2 - 20UNF inch |
| Load Rating (Dynamic) | = | 7500kg |
| Load Rating (Static) | = | 6170kg |
| Max Speed | = | 950 rev/min |
| Grease Nipple Thread Size | = | M10 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
