SKU: UCC207

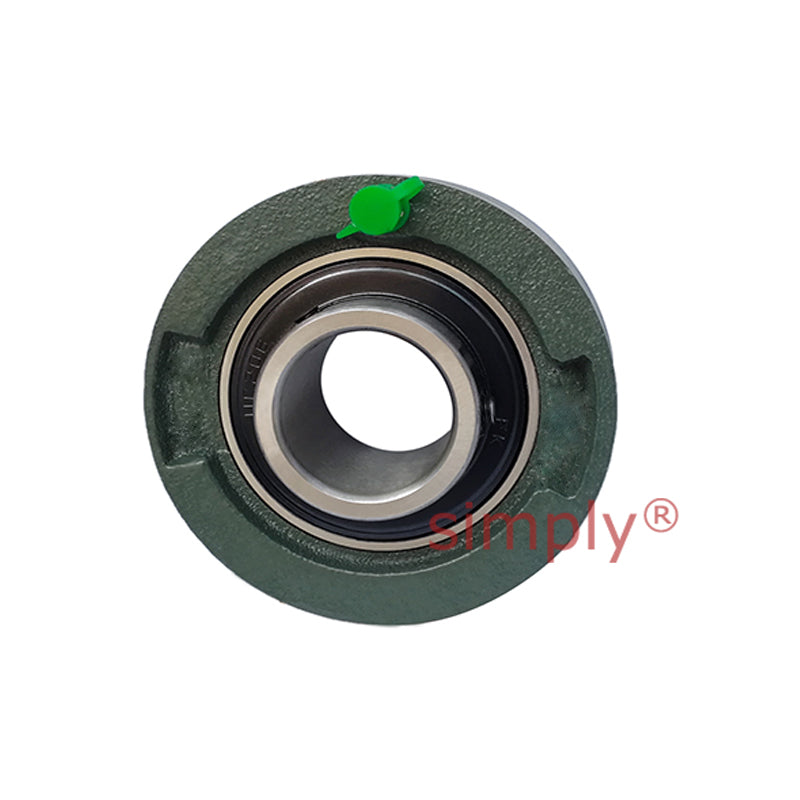

UCC207 Metric Cast Iron Normal Duty Cartridge Unit with 35mm Bore Insert 90mm Outside Dia
- Regular price
- €20.62 ex VAT
- Sale price
- €20,62
- Regular price
-
Quantity Price Breaks
UCC207 Metric Cast Iron Normal Duty Cartridge Unit with 35mm Bore Insert 90mm Outside Dia
- Regular price
- €20.62 ex VAT
- Sale price
- €20,62
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Bore d | = | 35mm |
| Outer Dia a | = | 90mm |
| g | = | 28mm |
| r | = | 2mm |
| B | = | 42.9mm |
| n | = | 17.5mm |
| Bearing No | = | UC207 |
| Housing No | = | C207 |
