SKU: UCC211

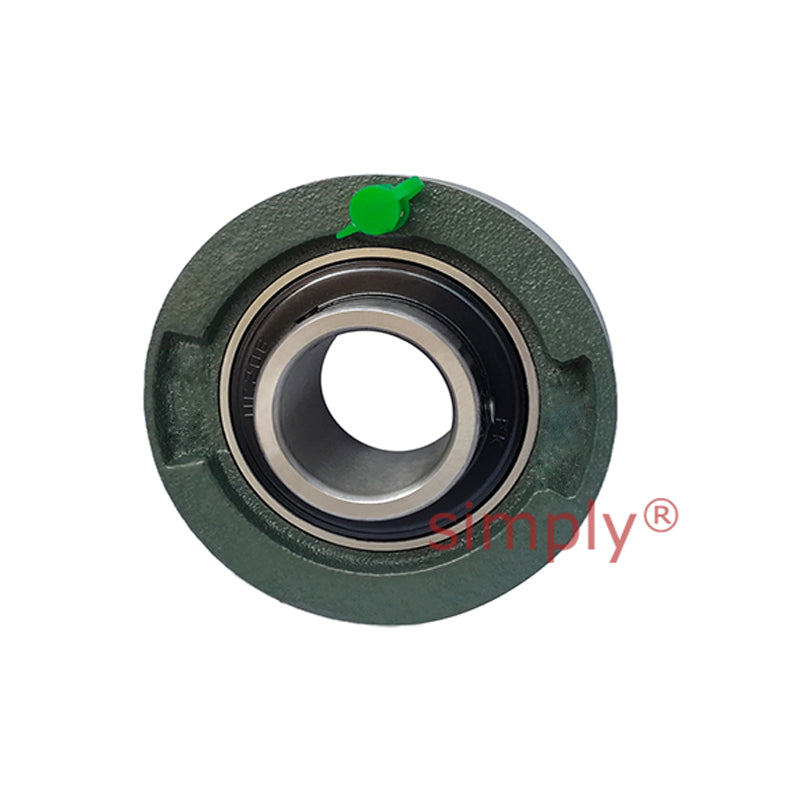

UCC211 Metric Cast Iron Normal Duty Cartridge Unit with 55mm Bore Insert 125mm Outside Dia
- Regular price
- €47.87 ex VAT
- Sale price
- €47,87
- Regular price
-
Quantity Price Breaks
UCC211 Metric Cast Iron Normal Duty Cartridge Unit with 55mm Bore Insert 125mm Outside Dia
- Regular price
- €47.87 ex VAT
- Sale price
- €47,87
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Bore d | = | 55mm |
| Outer Dia a | = | 125mm |
| g | = | 35mm |
| r | = | 2.5mm |
| B | = | 55 6 mm |
| n | = | 22.2mm |
| Bearing No | = | UC211 |
| Housing No | = | C211 |
