SKU: UCC211-34

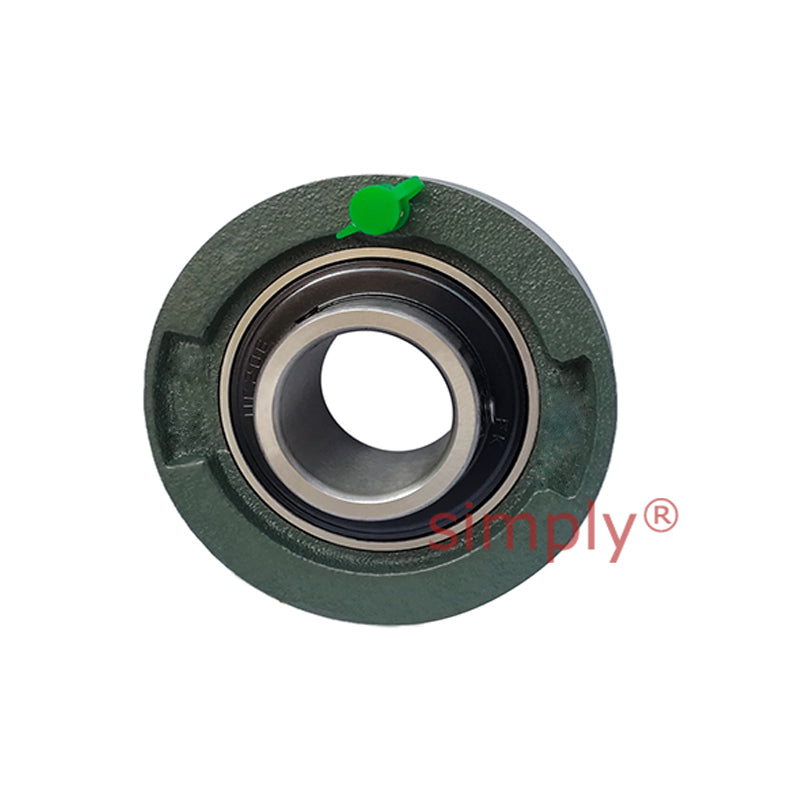

UCC211-34 Imperial Cast Iron Normal Duty Cartridge Unit with 2-1/8 inch Bore Insert 4.9213 inch Outside Dia
- Regular price
- €62.34 ex VAT
- Sale price
- €62,34
- Regular price
-
Quantity Price Breaks
UCC211-34 Imperial Cast Iron Normal Duty Cartridge Unit with 2-1/8 inch Bore Insert 4.9213 inch Outside Dia
- Regular price
- €62.34 ex VAT
- Sale price
- €62,34
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Bore d | = | 2-1/8 inch |
| Outer Dia a | = | 4.9213 inch |
| g | = | 1-3/8 inch |
| r | = | 0.098 inch |
| B | = | 2.189 inch |
| n | = | 0.874 inch |
| Bearing No | = | UC211-34 |
| Housing No | = | C211 |
