SKU: UCC211D1-NTN

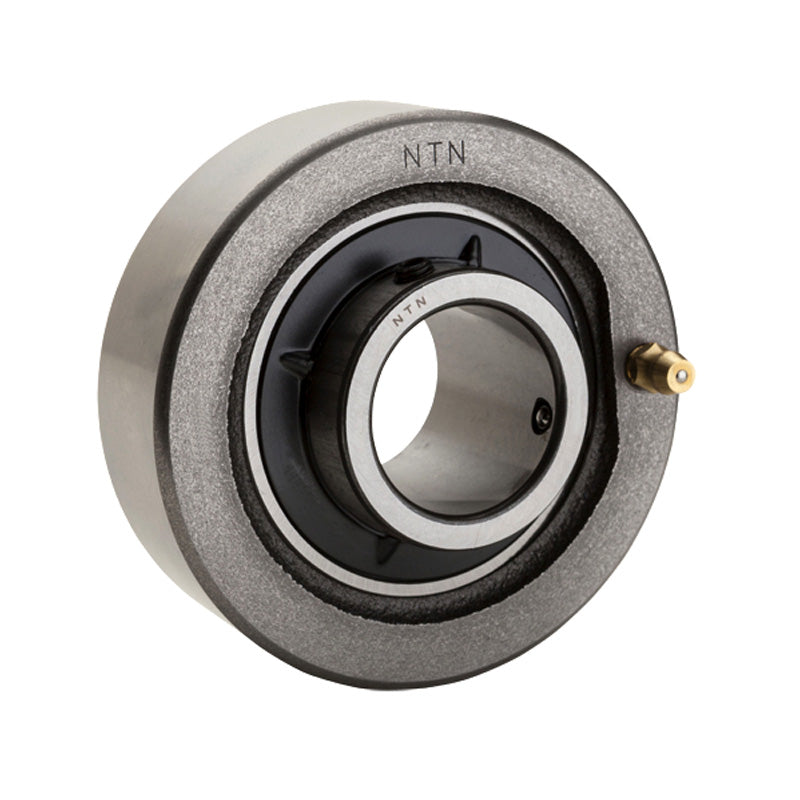

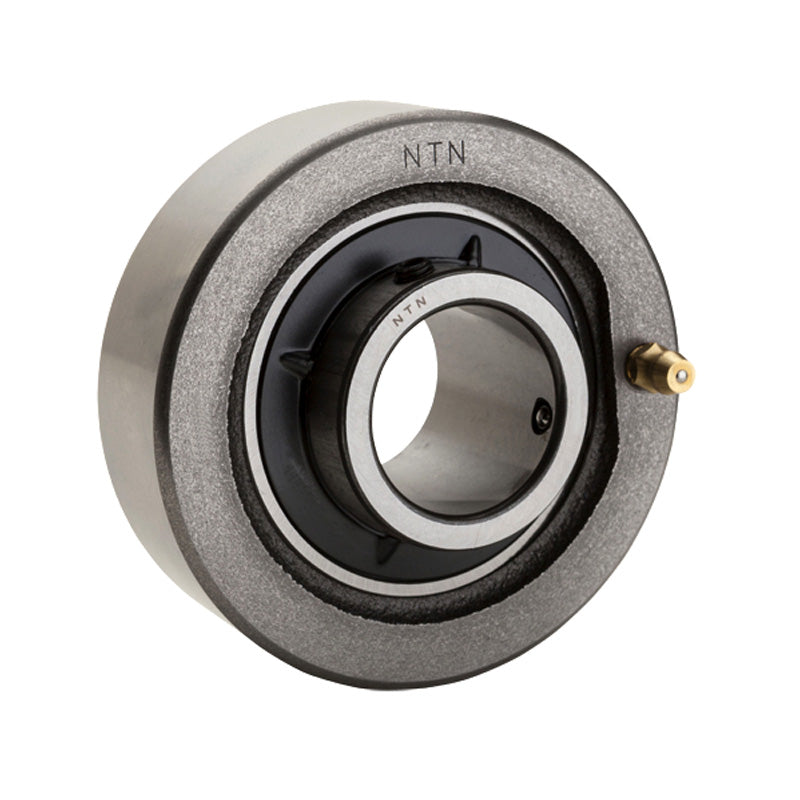

NTN UCC211D1 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Quantity Price Breaks
NTN UCC211D1 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
- Regular price
- €69.94 ex VAT
- Sale price
- €69,94
- Regular price
-
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Technical
| Shaft diameter | = | 55mm |
| H | = | 125mm |
| A | = | 35mm |
| r | = | 2.5mm |
| B | = | 55.6mm |
| S | = | 22.2mm |
| Mass | = | 2.1 kg |
