SKU: UCEHE207-20-SNR
SNR UCEHE207-20 Imperial Cast Iron Hanger Bearing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€40.74
4
€38.46
9
€38.00
19
€37.54
49
€37.08
99
€36.62
499
€34.34
999
€33.88
1999
€33.42
2999
€32.96
4999
€32.05
SKU:
UCEHE207-20-SNR
SNR UCEHE207-20 Imperial Cast Iron Hanger Bearing Unit with 1-1/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- €45.78 ex VAT
- Sale price
- €45,78
- Regular price
-
Description

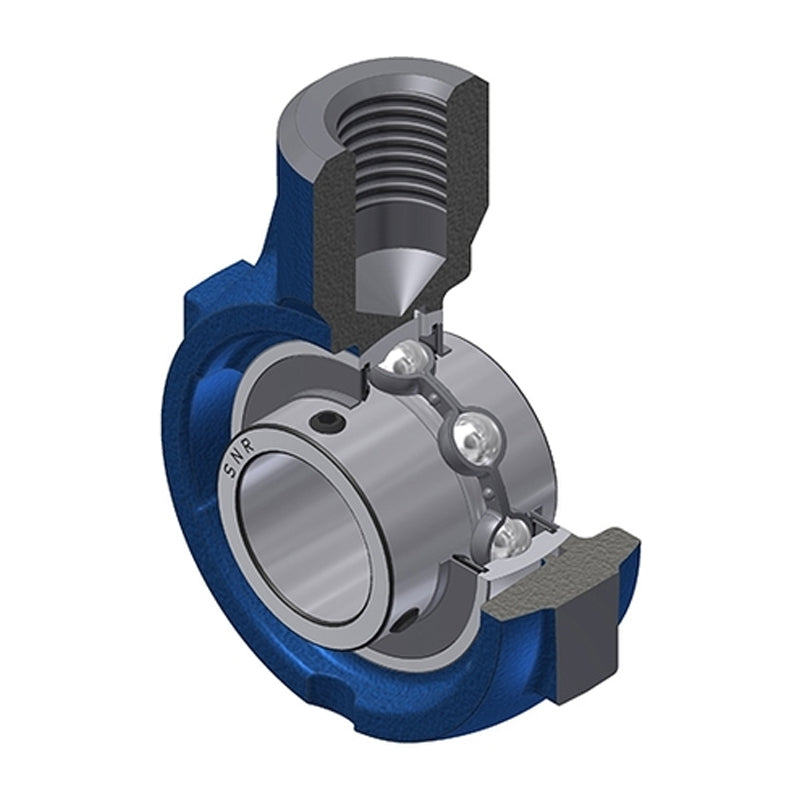

UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 1-1/4 inch |
| A | = | 32mm |
| A2 | = | 40mm |
| B | = | 42.9mm |
| E | = | 24mm |
| H | = | 90mm |
| L | = | 122mm |
| L1 | = | 76mm |
| L3 | = | 40mm |
| S | = | 17.5mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.23 kg |
