SKU: UCF.207-MB
UCF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
UCF207 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
Regular price
€46,04
ex VAT
Regular price
Sale price
€46,04
ex VAT
Low stock
Price Break
10+
€34,99
19+
€33,02
29+
€32,63
39+
€32,23
49+
€31,84
74+
€31,45
99+
€29,48
199+
€29,09
249+
€28,70
499+
€28,30
999+
€27,52
Quantity
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCF
Technical
Technical

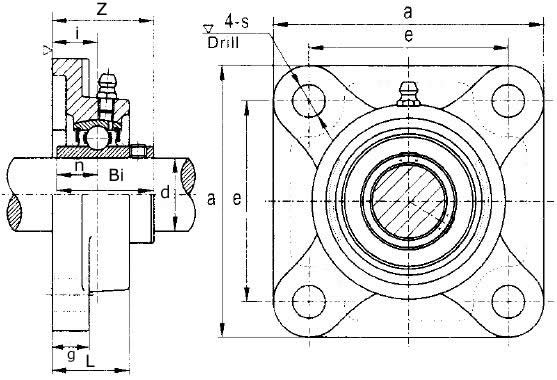

| d | 35mm |
|---|---|
| a | 117mm |
| e | 92mm |
| i | 24.5mm |
| g | 16mm |
| L | 34mm approx |
| S | 14.6mm |
| Z | 44mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | 12mm |
| Weight | 1.25 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
